Description

“Your Oasis Awaits”

“Your Oasis Awaits”

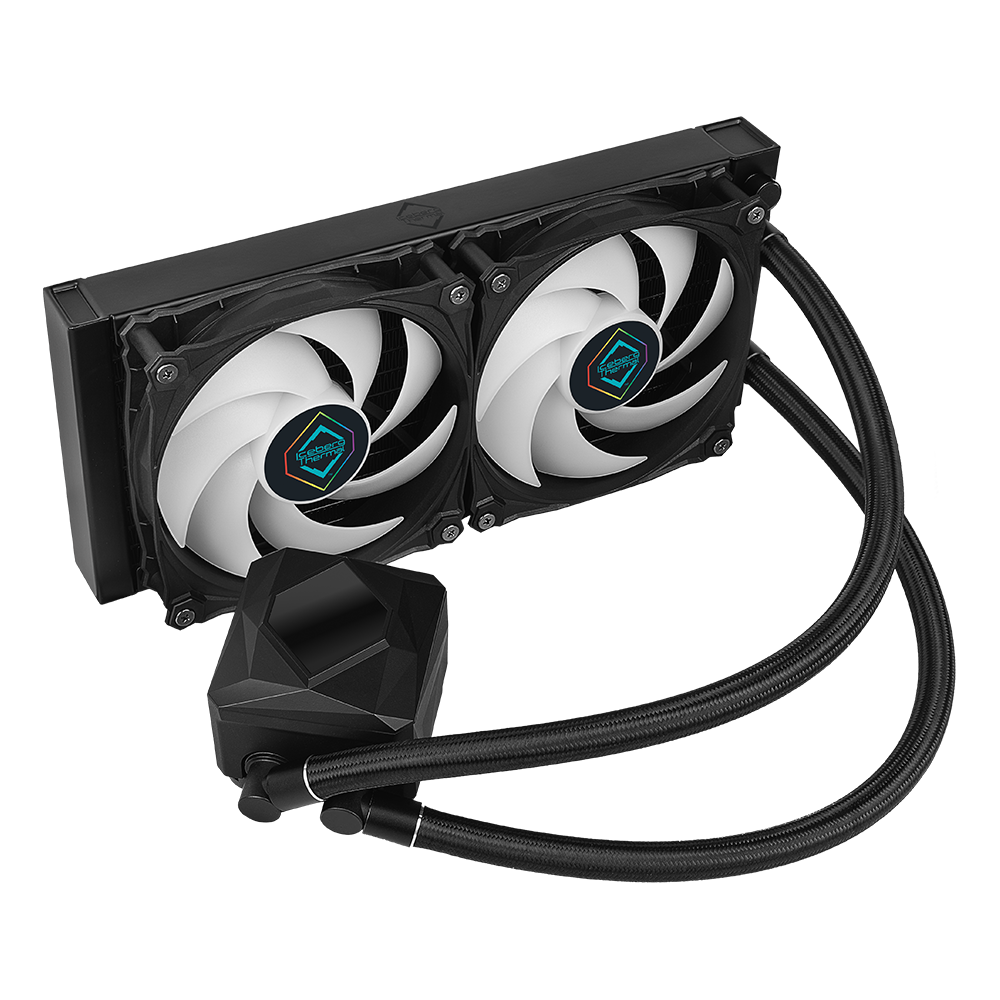

Take control of your aesthetic with the latest ARGB Gen 2 technology. Individually controllable LED’s on both the fans and water block offer complete customization of the lighting experience for a more personalized vibe.

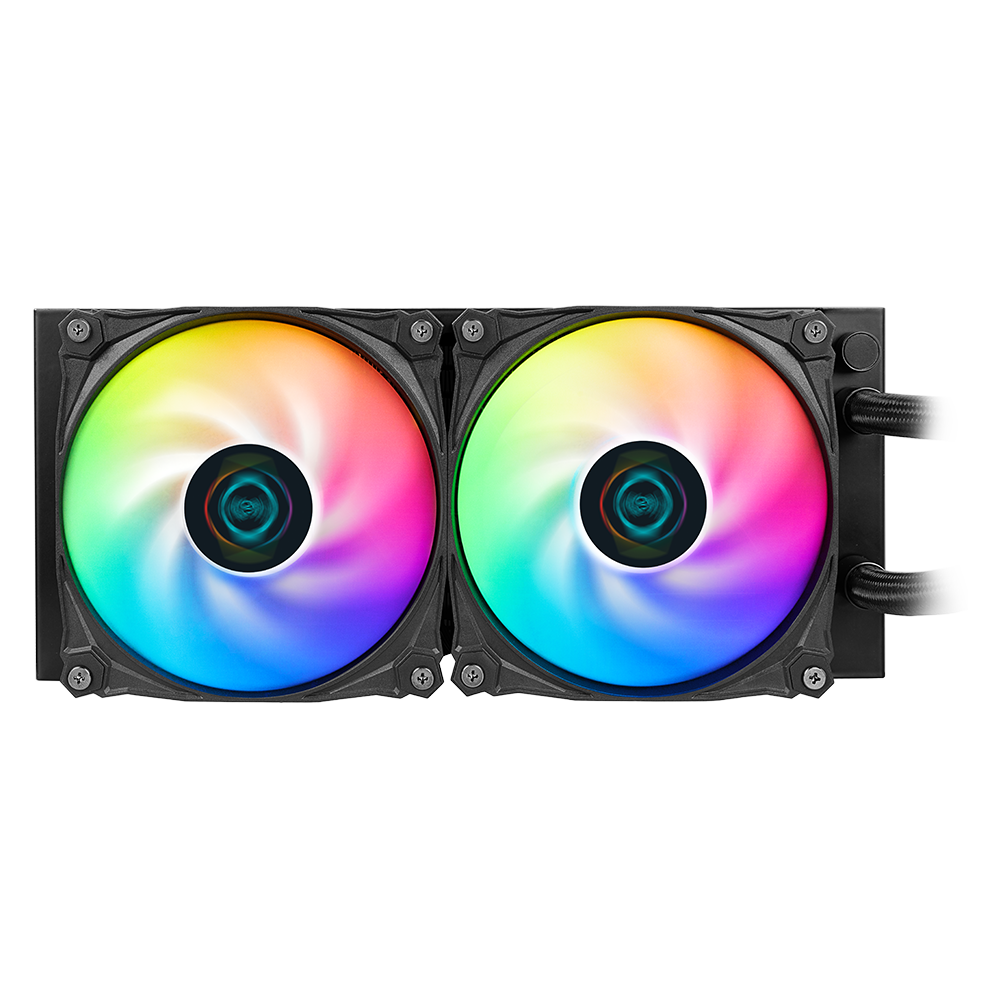

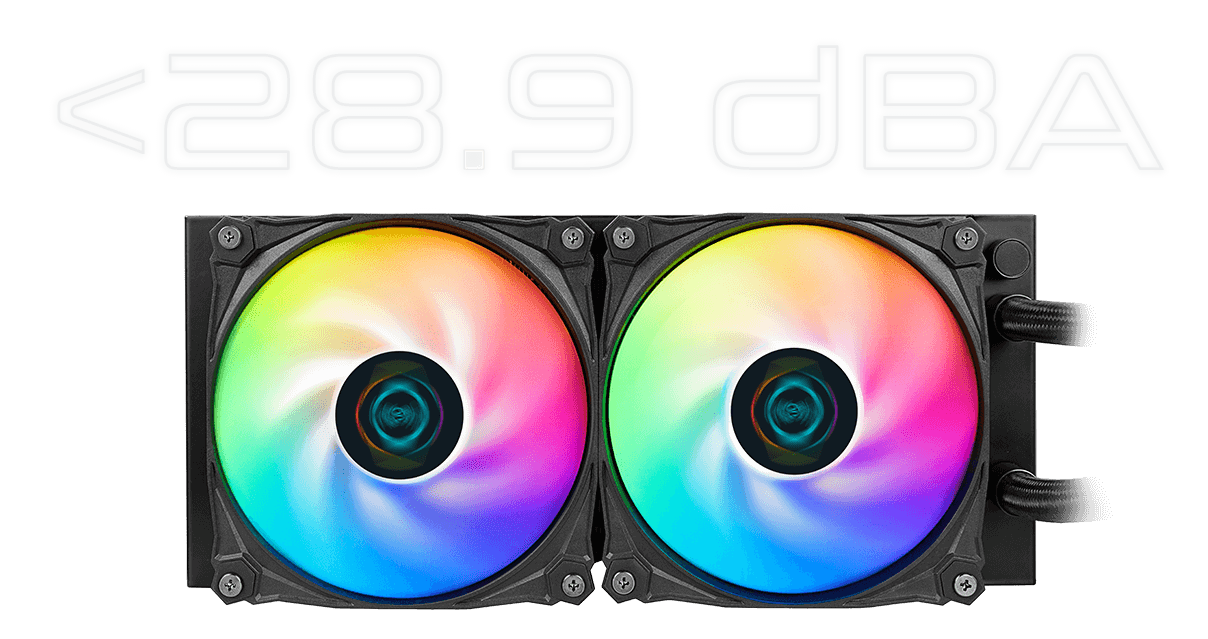

Quiet Pressure-Optimized Fans

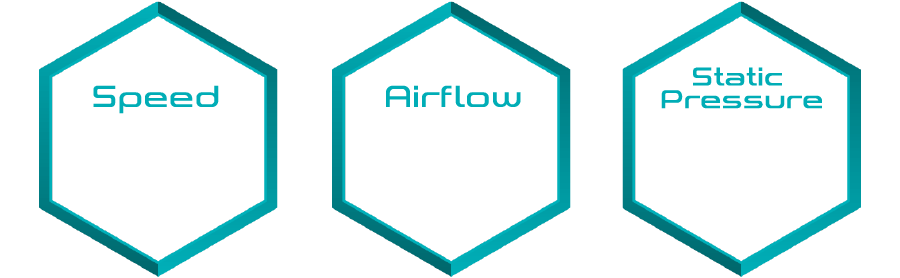

IceGALE Lightning ARGB Gen 2 Fans were specifically designed for a balanced noise to performance profile. With a speed range of 200-2200 RPM and 76.74 CFM, these fans produce a maximum of 28.9 dBA while achieving 2.8 mm H2O static pressure. This creates strong radiator cooling while maintaining near noiseless operation.

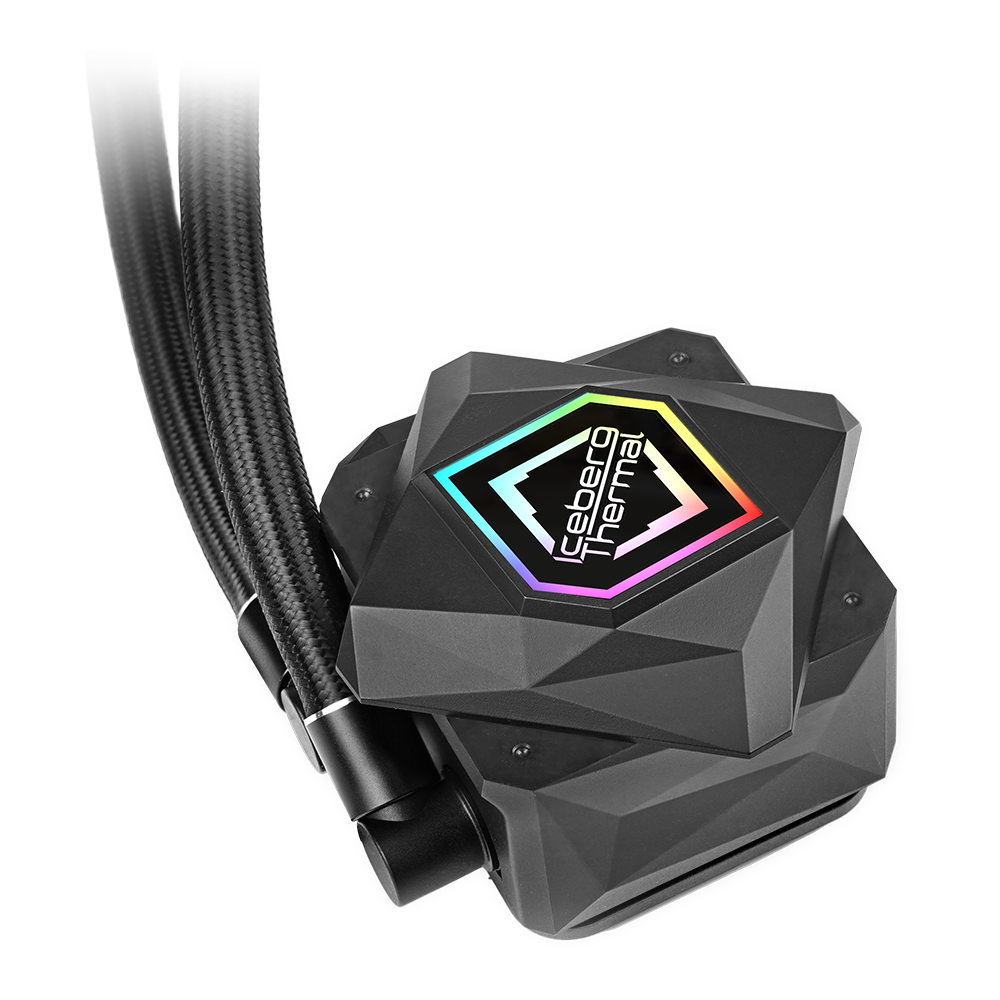

Rotatable
Pump Cover

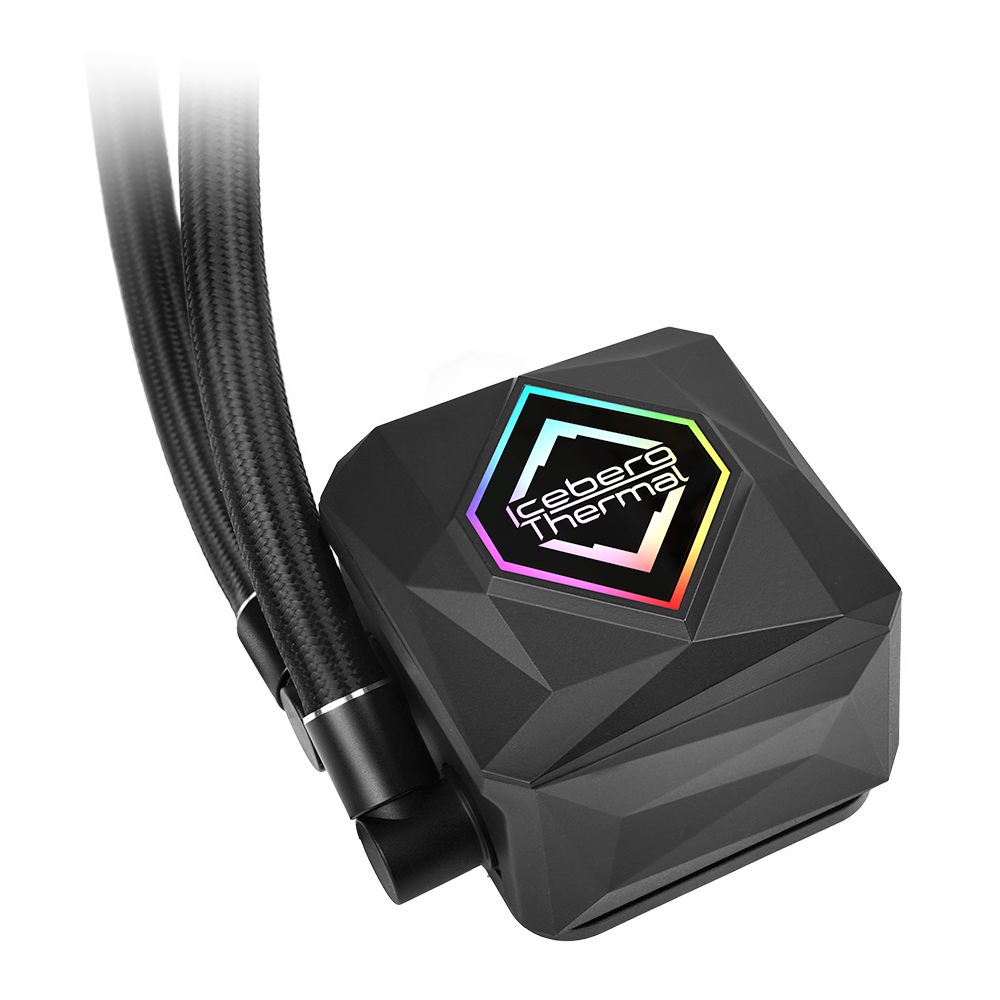

360-degree rotatable pump cover ensures aesthetic alignment of the water block regardless of installation orientation. Easily adjust the position of the water block by spinning the pump cover in 90-degree increments – no tools necessary.

Elite
Quality Control

Rigorous performance testing during the manufacturing process ensures proper unit functionality for a worry-free buyer experience. Each Oasis is individually tested, ensuring exceptional performance and leak-free reliability.

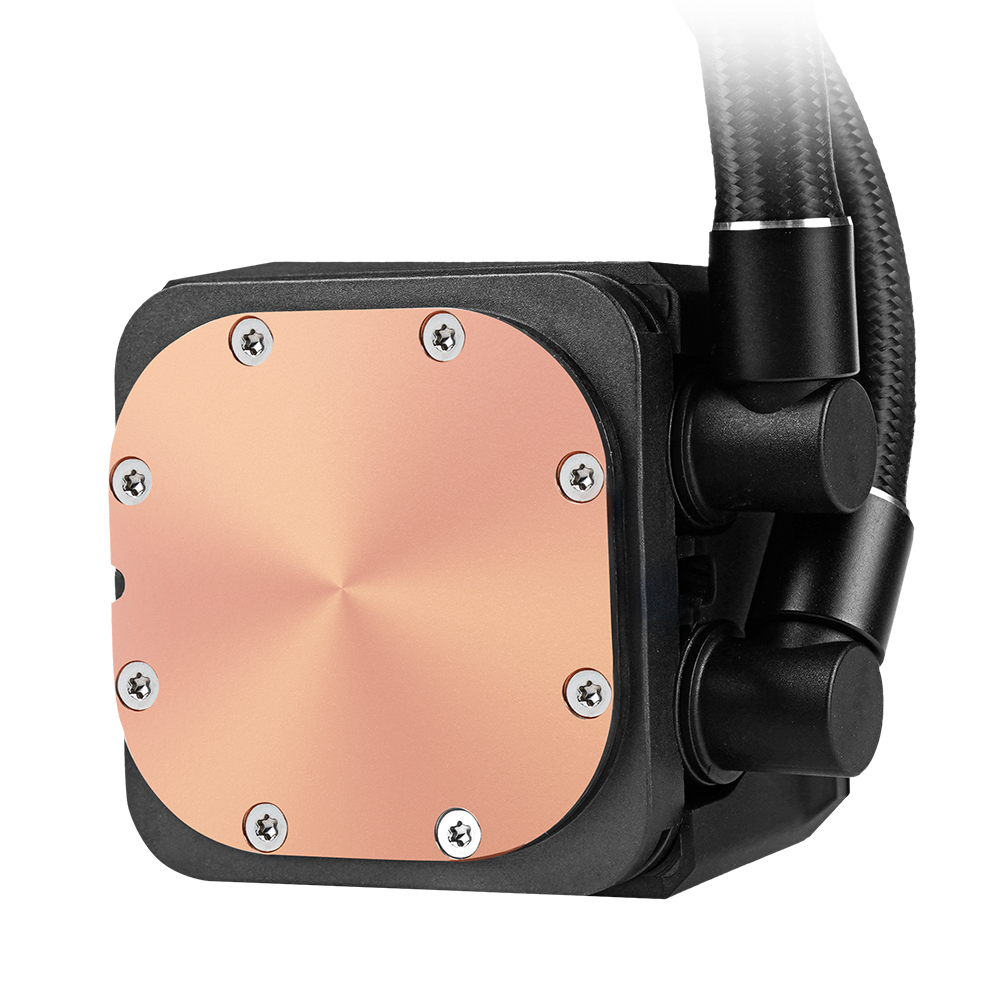

Precision Crafted

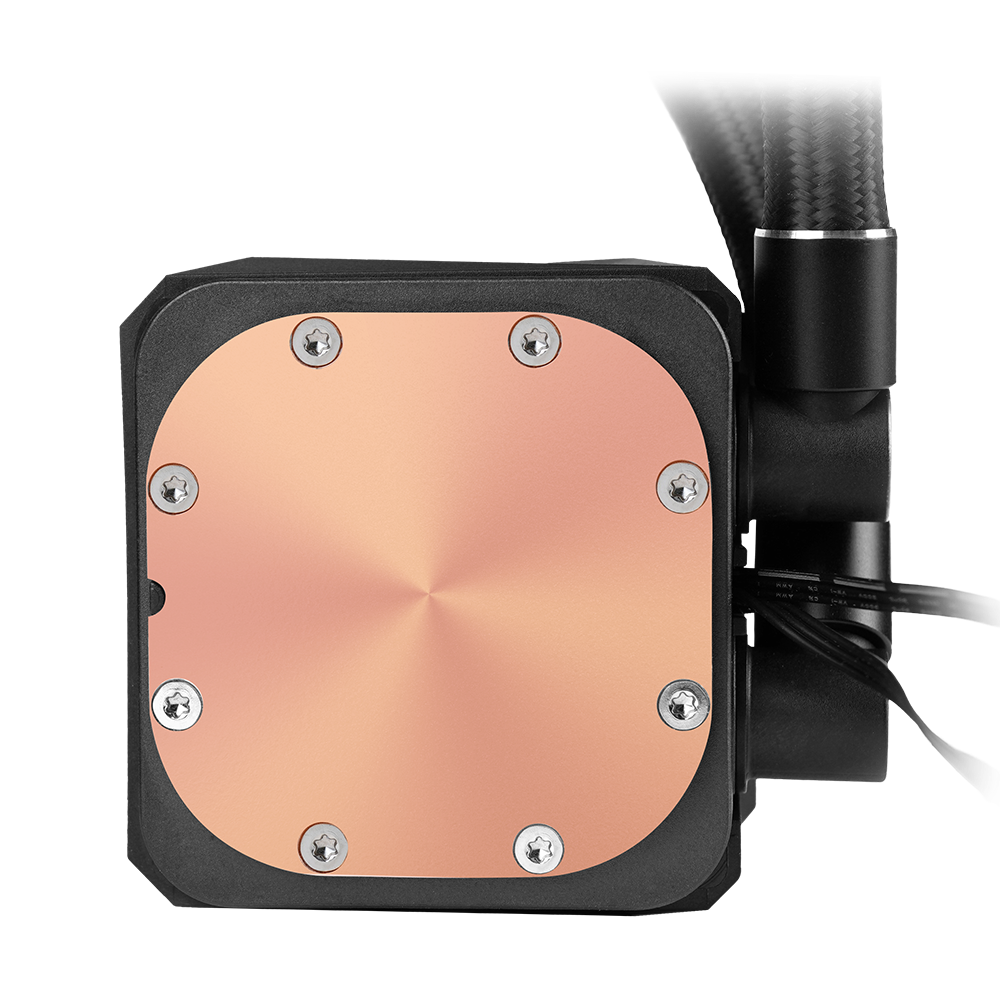

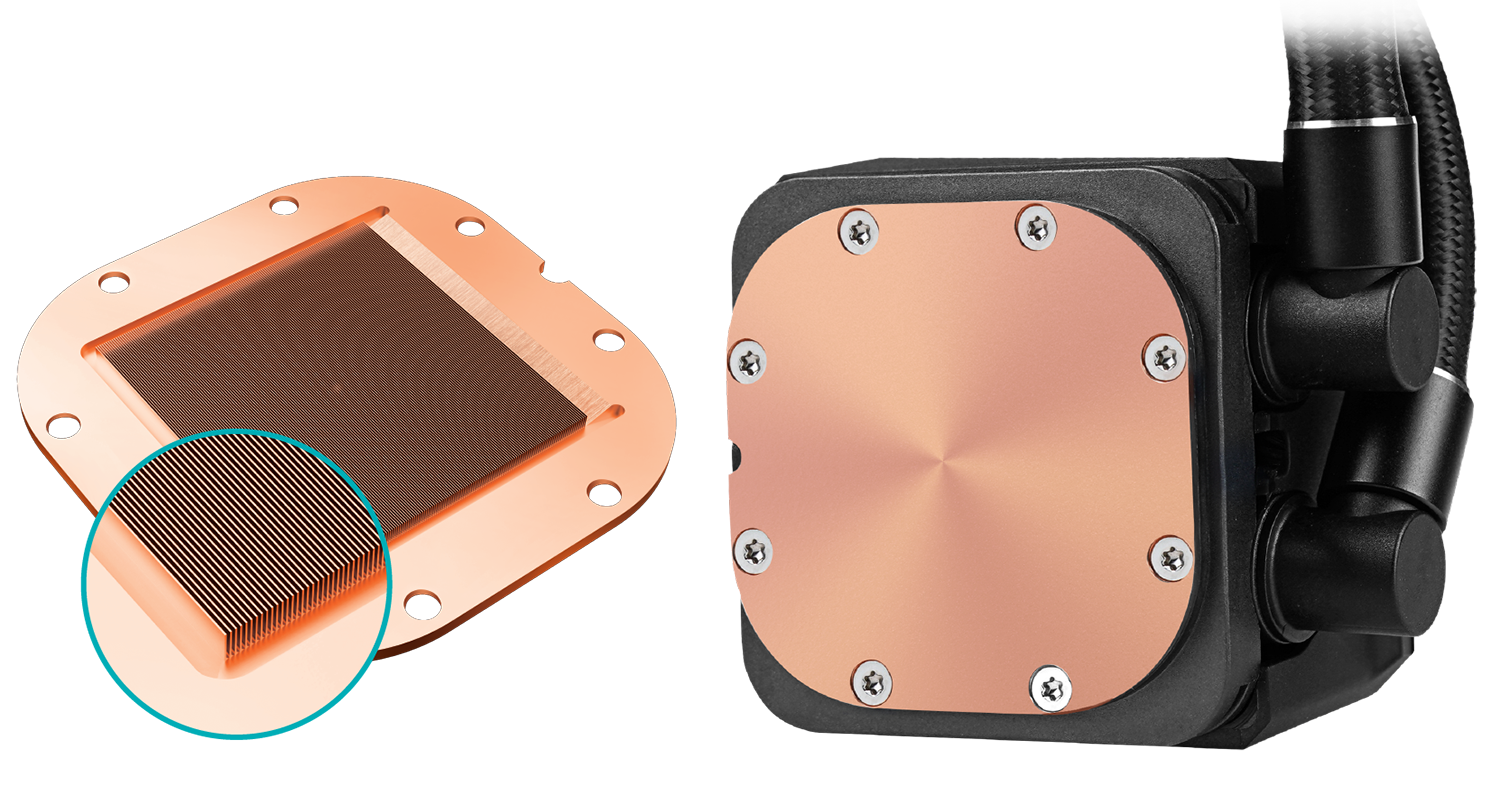

The water block’s copper contact plate features densely stacked microfins, carefully crafted for superior heat transfer capabilities and meticulously inspected to meet our high-quality standards.

Long-Lasting Pump

3100 RPM Pump achieves powerful coolant circulation while producing a maximum noise level of only 20 dBA. Optimized for durability, the pump’s life is rated for over 100,000 hours allowing us to provide IceFLOE® OASIS with an unrivaled seven-year warranty.

Intuitive
Installation

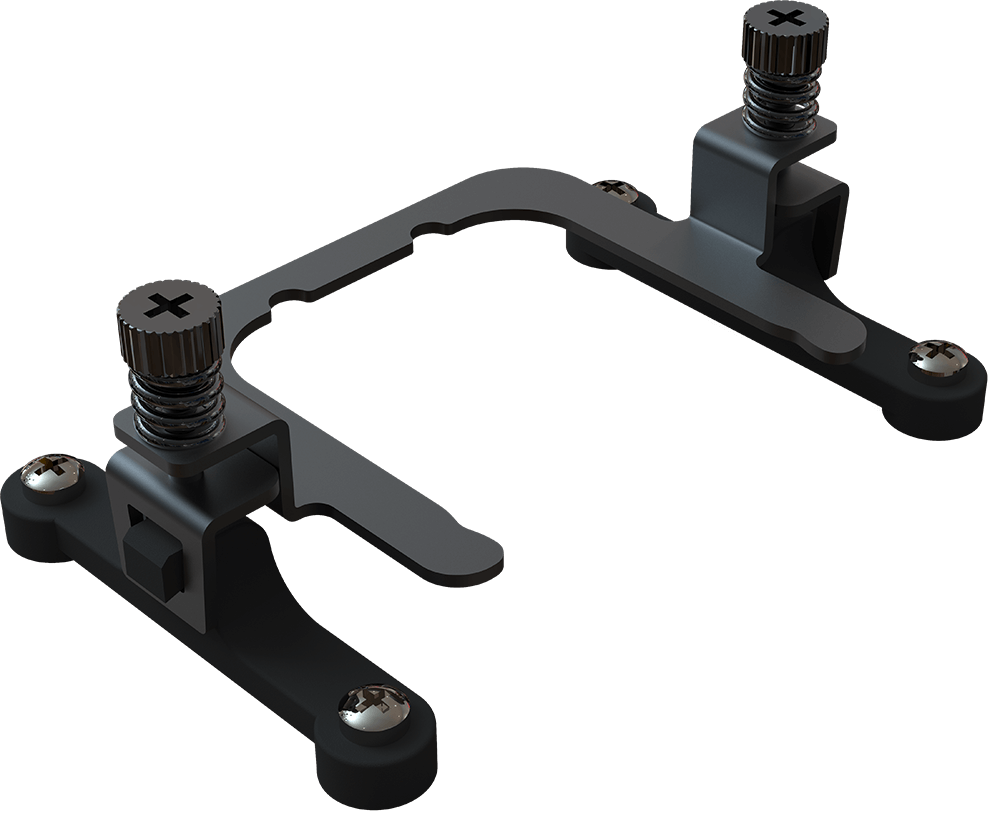

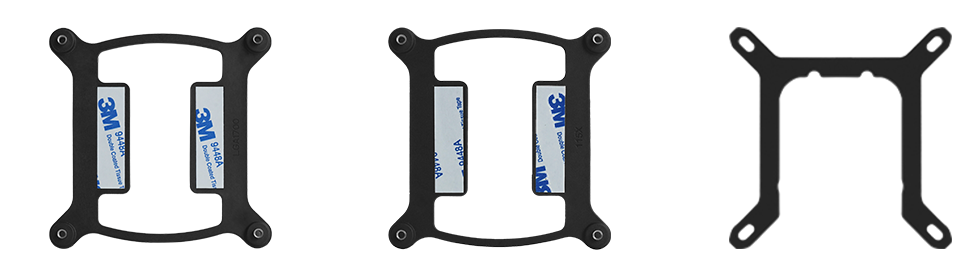

The Oasis mounting bracket was designed with simplicity and compatibility in mind. With mounting hardware for both LGA 1700 and AM4/AM5 included in the box, treat your CPU to an icy Oasis in just a matter of minutes.

Intuitive Installation

The Oasis mounting bracket was designed with simplicity and compatibility in mind. With mounting hardware for both LGA 1700 and AM4/AM5 included in the box, treat your CPU to an icy Oasis in just a matter of minutes.

“Your Oasis Awaits”

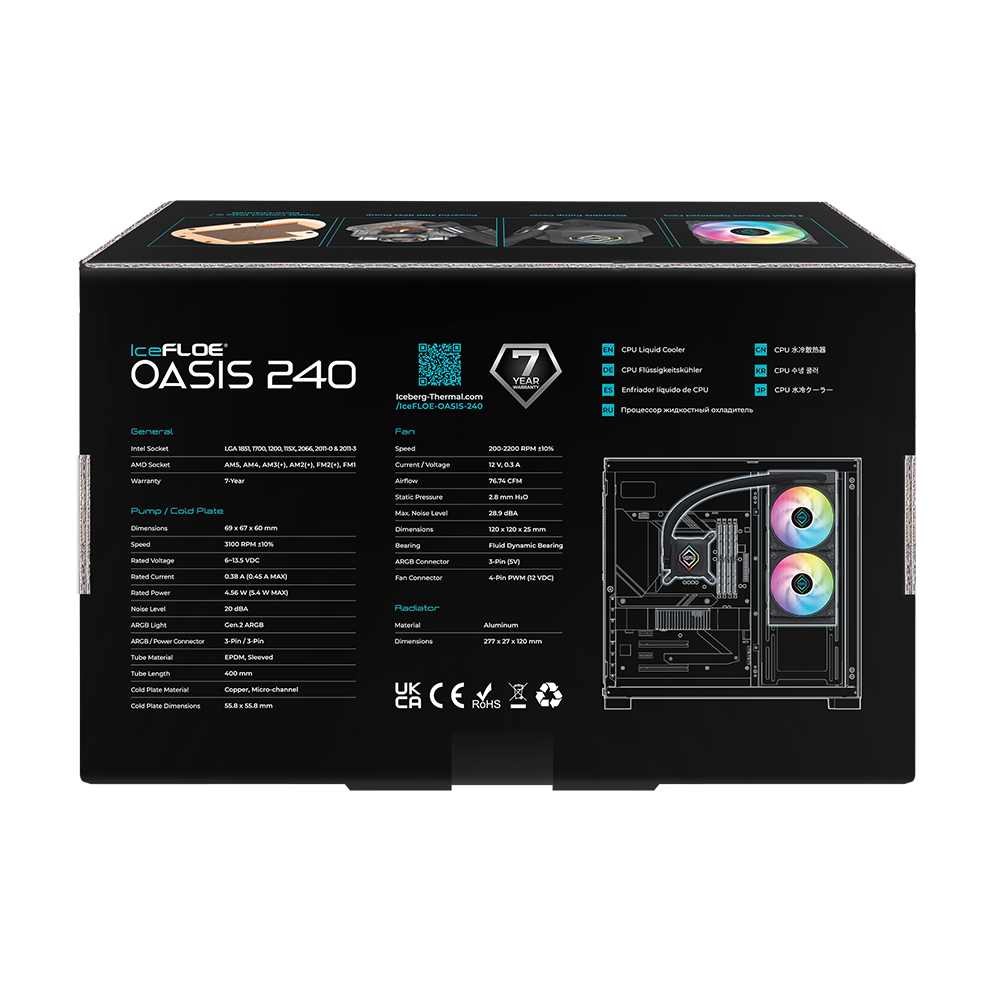

Specifications

General

Product Number
IFOA24-BAN
Compatible Socket
Intel LGA 1851, 1700, 1200, 115X, 2066, 2011-0 & 2011-3
AMD AM5, AM4, AM3(+), AM2(+), FM2(+), FM1
Manufacturer Warranty
7-Year

Pump / Cold Plate

Dimensions
69 x 67 x 60 mm
Speed
3100 RPM ±10%
Rated Voltage
6~13.5 VDC
Rated Current
0.38 A (0.45 A MAX)
Rated Power
4.56 W (5.4 W MAX)
Noise Level
20 dBA
ARGB Light
Gen.2 ARGB

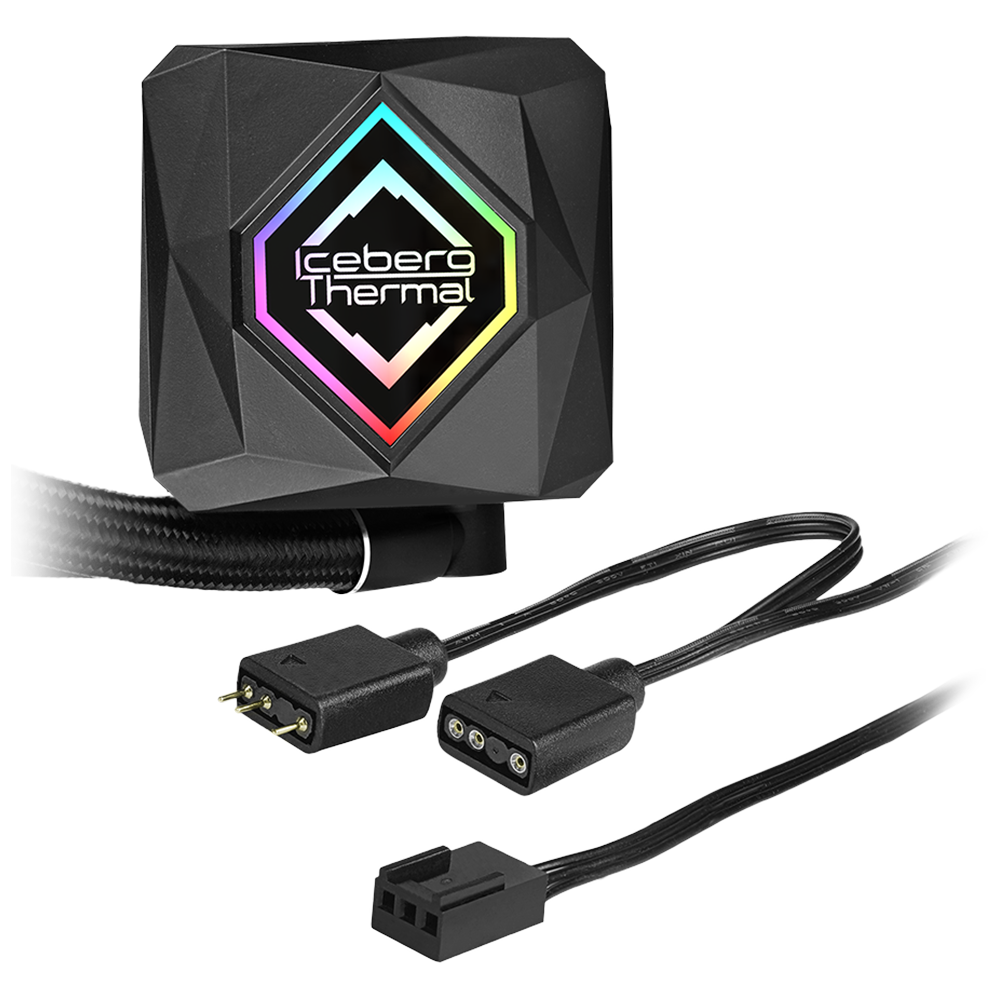

ARGB / Power Connector
3-Pin / 3-Pin
Tube Material
EPDM, Sleeved
Tube Length
400 mm
Cold Plate Material
Copper, Micro-channel
Cold Plate Dimensions
55.8 x 55.8 mm

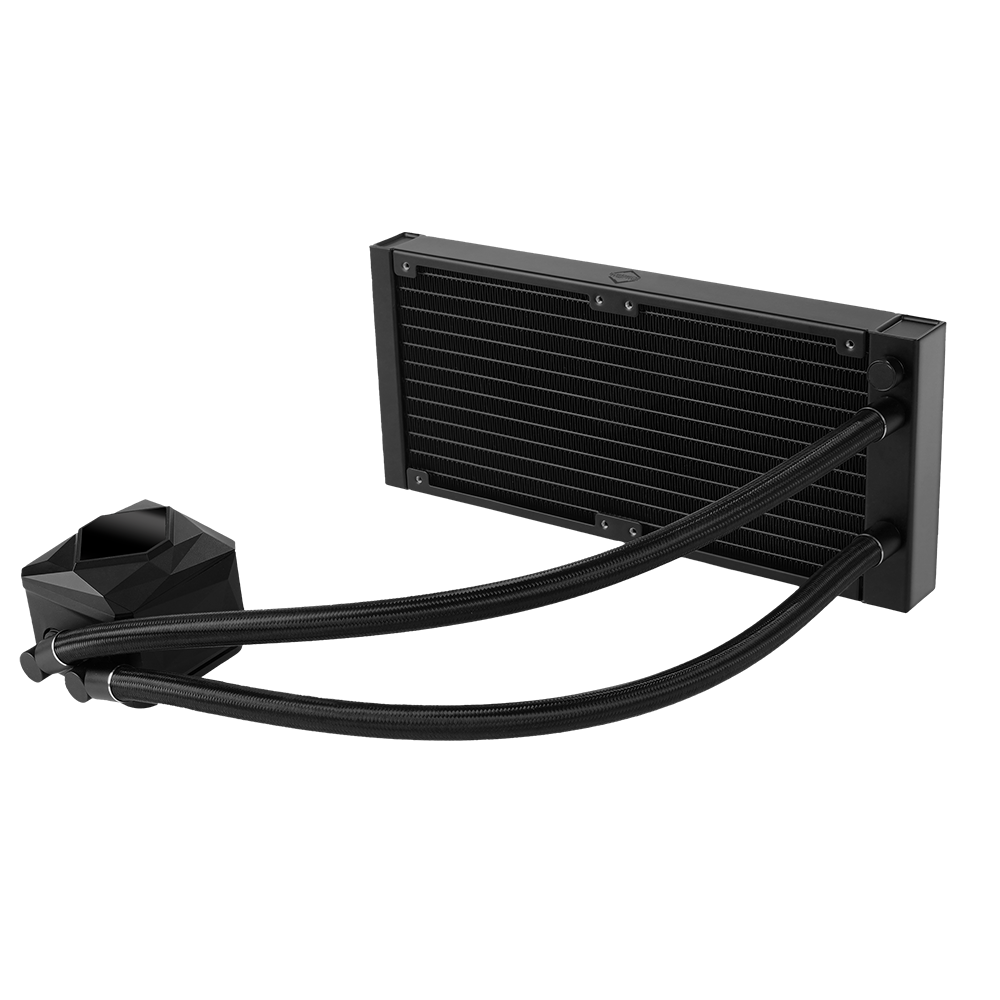

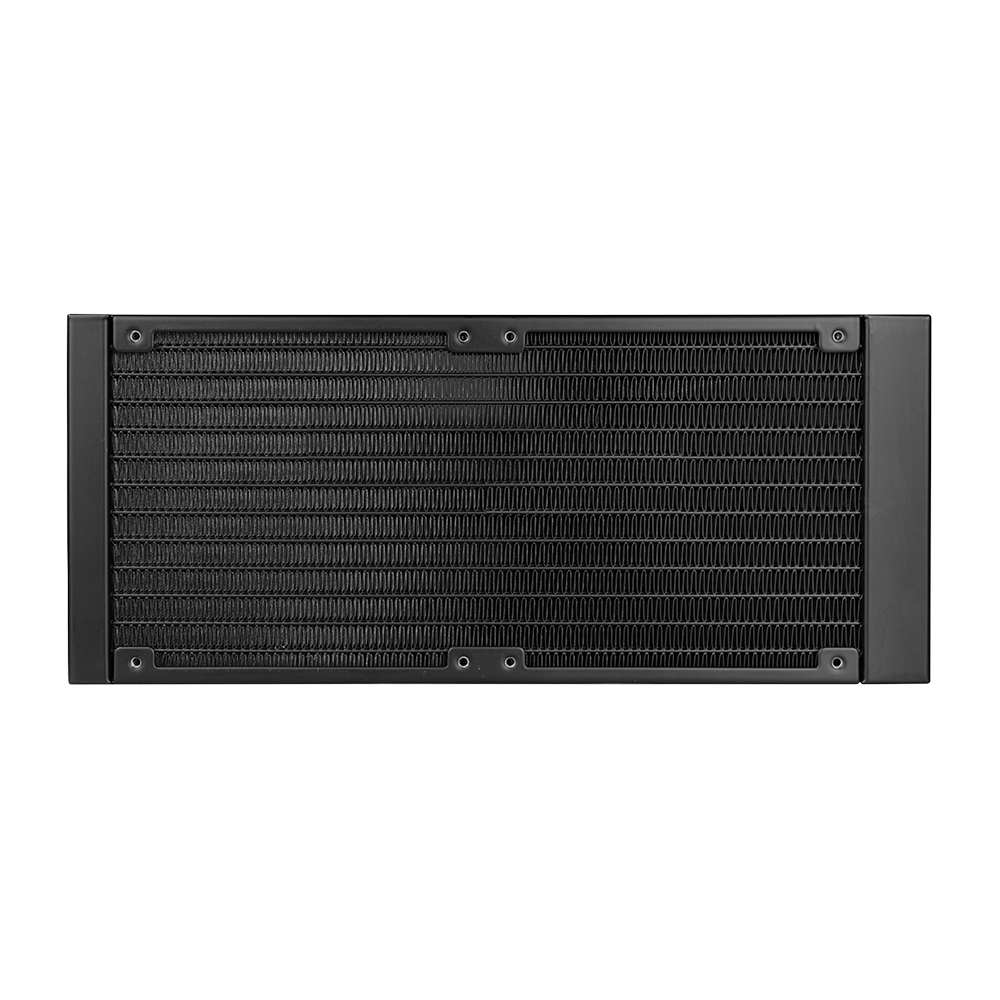

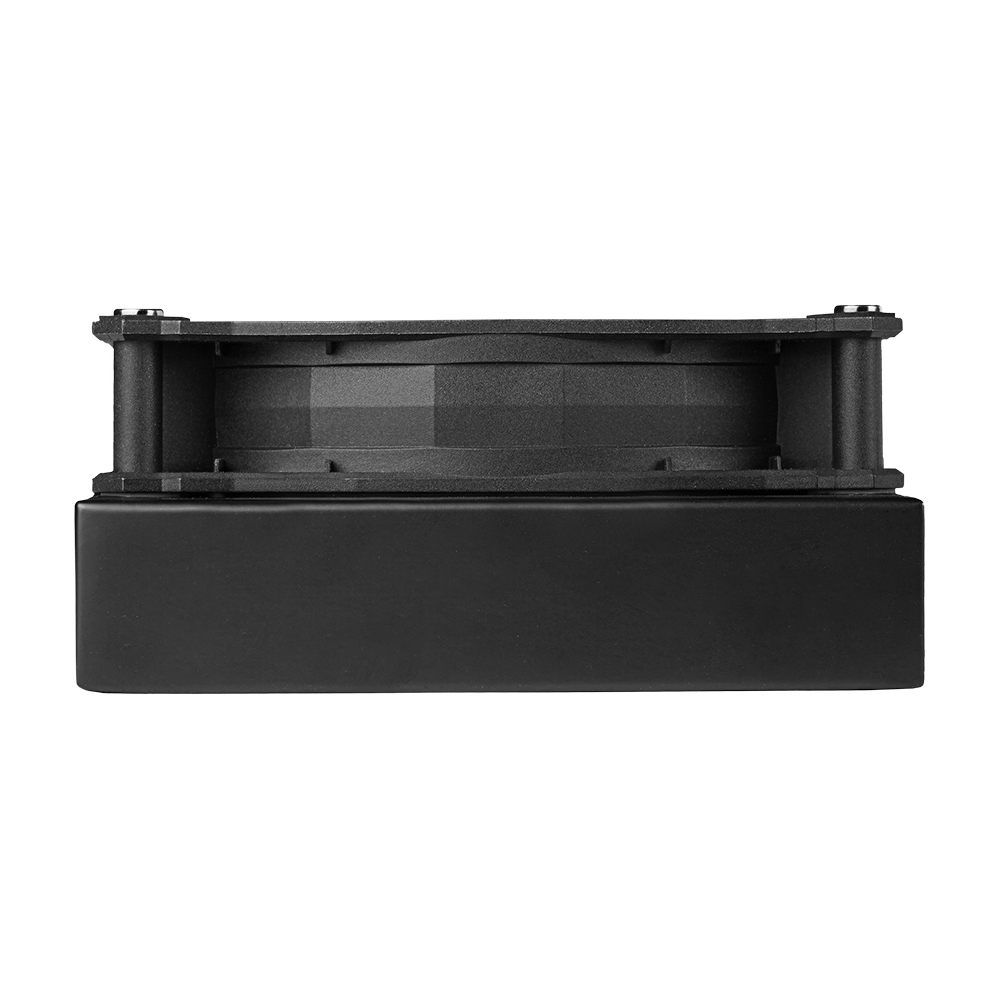

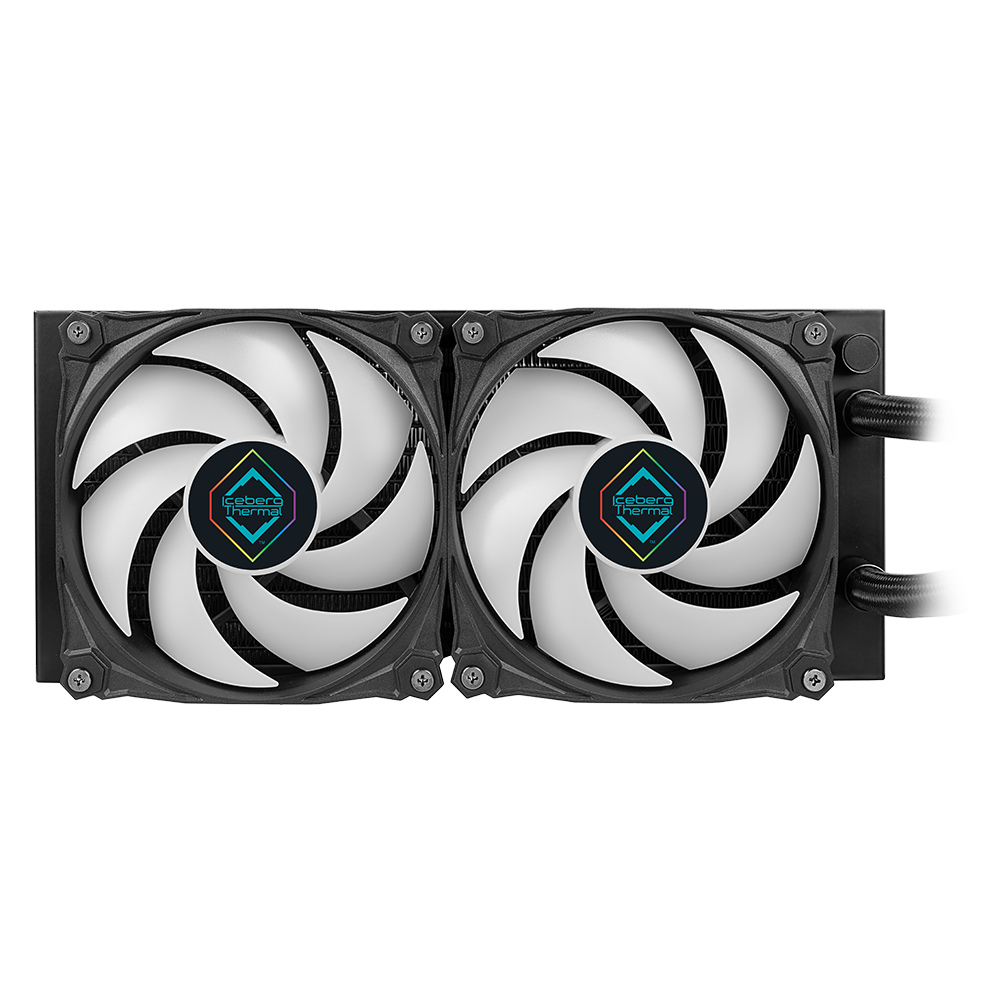

Radiator

Material
Aluminum
Dimensions
277 x 27 x 120 mm

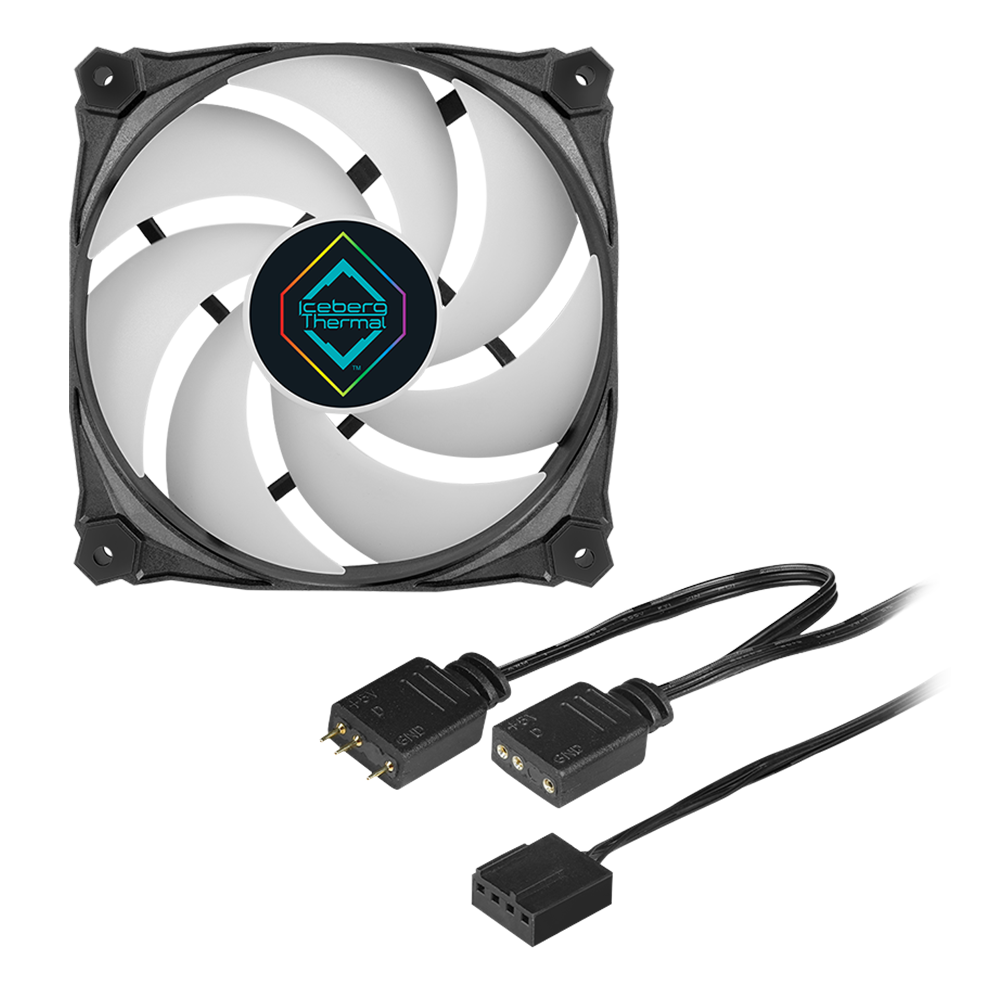

Fan

Speed
200-2200 RPM ±10%
Current / Voltage
12 V, 0.3 A
Airflow
76.74 CFM
Static Pressure
2.8 mm H2O
Max. Noise Level
28.9 dBA
Dimensions
120 x 120 x 25 mm
Bearing
Fluid Dynamic Bearing
ARGB Connector
3-Pin (5V)
Fan Connector
4-Pin PWM (12 VDC)

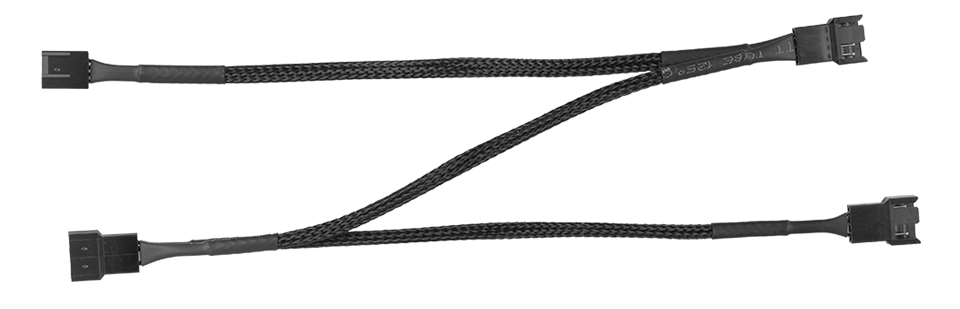

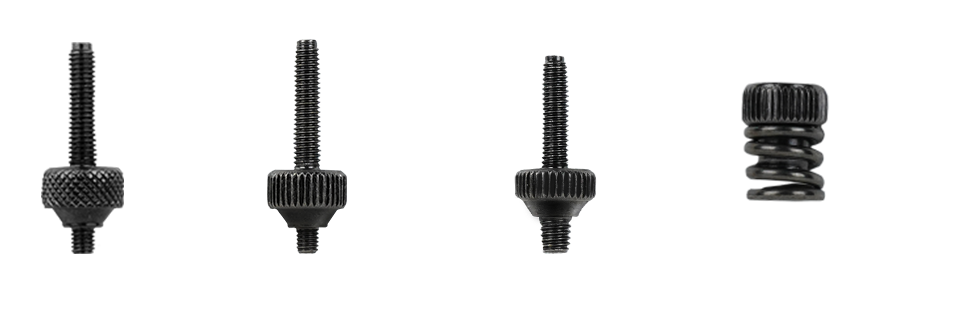

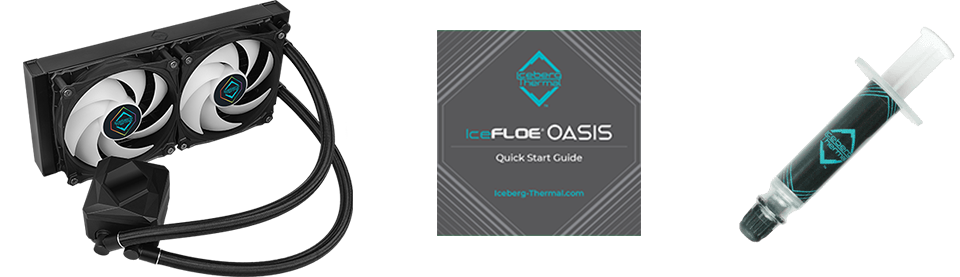

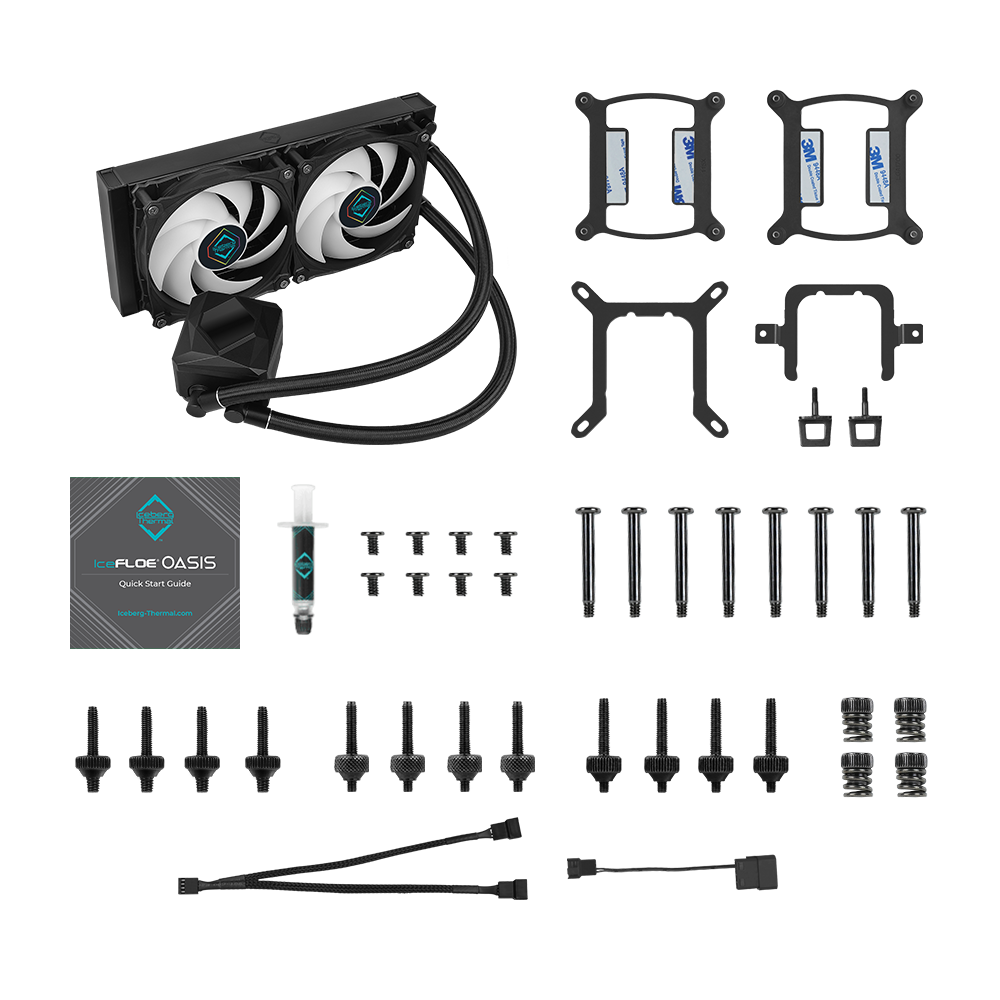

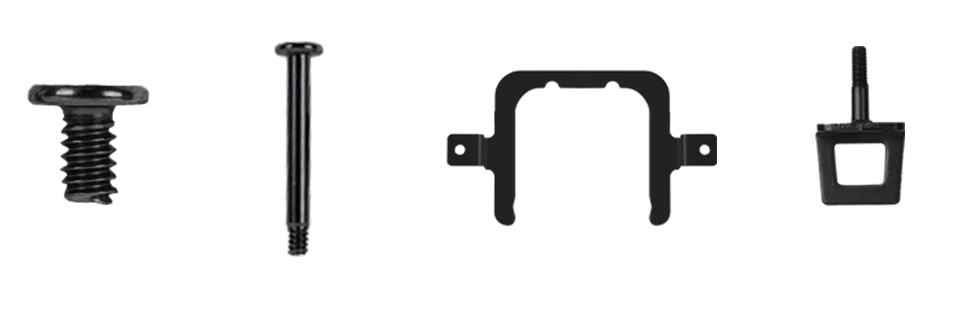

Box Content

Additional information

Cooler Type

Liquid Cooler

Lighting

ARGB Gen.2

Socket Support

Intel, AMD

Heatpipes

None

Fan

Dual

Ram Clearance

Infinite
