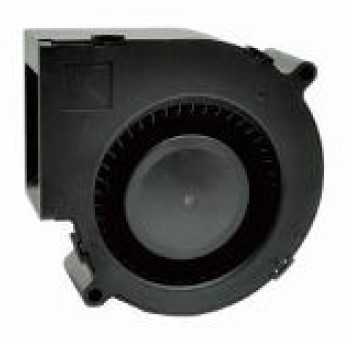

9733 Blower Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTV9733X12S | Sleeve | 12 | 7.0 ~ 13.8 | 2.17 | 26.04 | 5000 | 34.13 | 46.41 | 61.8 |
| ICTV9733H12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.72 | 8.64 | 3500 | 23.89 | 22.74 | 54.05 |
| ICTV9733M12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.45 | 5.4 | 3000 | 20.48 | 16.71 | 50.7 |
| ICTV9733L12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.26 | 3.12 | 2500 | 17.06 | 11.6 | 46.74 |
| ICTV9733X24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.8 | 19.2 | 5000 | 34.13 | 46.41 | 61.8 |
| ICTV9733H24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.34 | 8.16 | 3500 | 23.89 | 22.74 | 54.05 |
| ICTV9733M24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.23 | 5.52 | 3000 | 20.48 | 16.71 | 50.7 |
| ICTV9733L24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.13 | 3.12 | 2500 | 17.06 | 11.6 | 46.74 |
| ICTV9733X12B | Two Ball | 12 | 7.0 ~ 13.8 | 2.17 | 26.04 | 5000 | 34.13 | 46.41 | 61.8 |
| ICTV9733H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.72 | 8.64 | 3500 | 23.89 | 22.74 | 54.05 |
| ICTV9733M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.45 | 5.4 | 3000 | 20.48 | 16.71 | 50.7 |
| ICTV9733L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.26 | 3.12 | 2500 | 17.06 | 11.6 | 46.74 |
| ICTV9733X24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.8 | 19.2 | 5000 | 34.13 | 46.41 | 61.8 |
| ICTV9733H24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.34 | 8.16 | 3500 | 23.89 | 22.74 | 54.05 |
| ICTV9733M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.23 | 5.52 | 3000 | 20.48 | 16.71 | 50.7 |
| ICTV9733L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.13 | 3.12 | 2500 | 17.06 | 11.6 | 46.74 |
