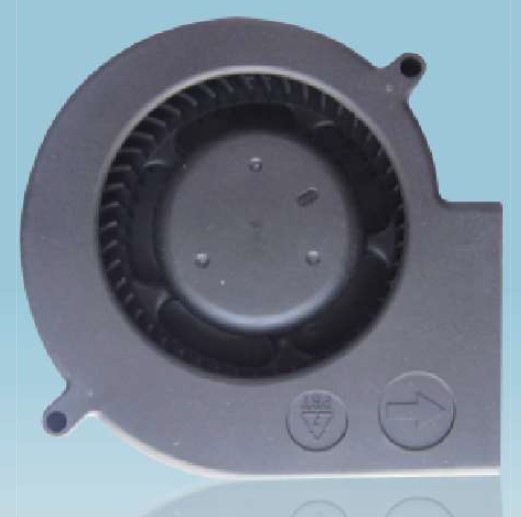

9733 Blower Series A

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTN9733L12BTwo Ball125.0 to 13.80.323.84270019.00.4945
ICTN9733M12BTwo Ball125.0 to 13.80.586.96320022.50.7350
ICTN9733H12BTwo Ball125.0 to 13.80.799.48360025.21.0053

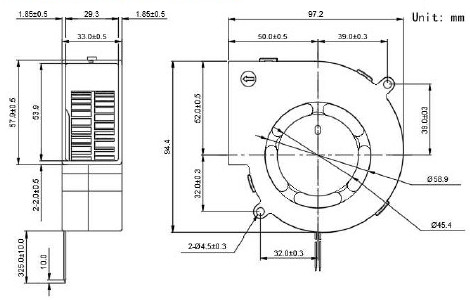

Dimension Drawing

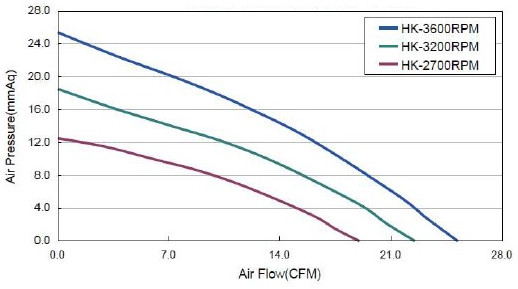

PQ Curve

B9733A B9733B
