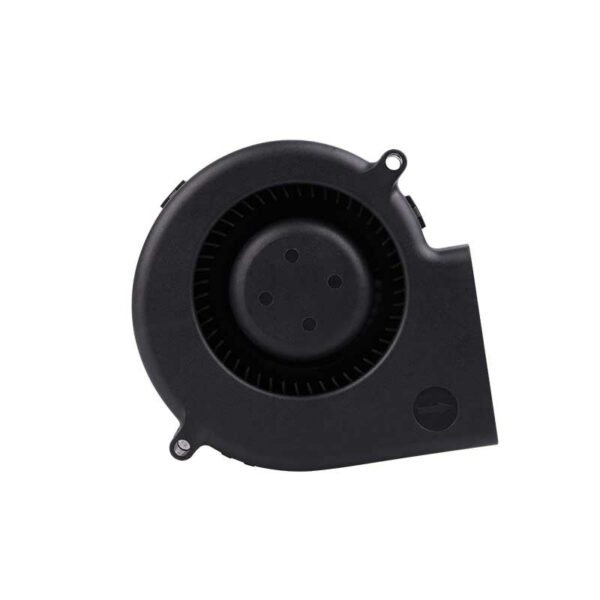

9733 Blower Basic
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| MODEL | Bearing Type | Rated Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTB9733L12S | Sleeve | 12 | 7 ~ 13.8 | 0.26 | 3.12 | 2400 | 16.55 | 9.40 | 41 |
| ICTB9733L24S | Sleeve | 24 | 14 ~ 17.6 | 0.13 | 3.12 | 2400 | 16.55 | 9.40 | 41 |
| ICTB9733M12S | Sleeve | 12 | 7 ~ 13.8 | 0.35 | 4.20 | 2800 | 19.30 | 13.45 | 45 |
| ICTB9733M24S | Sleeve | 24 | 14 ~ 27.6 | 0.18 | 4.32 | 2800 | 19.30 | 13.45 | 45 |
| ICTB9733H12S | Sleeve | 12 | 7 ~ 13.8 | 0.50 | 6.00 | 3200 | 22.10 | 18.50 | 49 |
| ICTB9733H24S | Sleeve | 24 | 14 ~ 27.6 | 0.28 | 6.72 | 3200 | 22.10 | 18.50 | 49 |
| ICTB9733X12B | Two Ball | 12 | 7 ~ 13.2 | 0.80 | 9.60 | 3600 | 25.40 | 24.85 | 52 |
| ICTB9733X24B | Two Ball | 24 | 14 ~ 26.4 | 0.40 | 9.60 | 3600 | 25.40 | 24.85 | 52 |
Dimension Drawing
