9238 Axial Series X

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTP9238L48BTwo Ball4836~720.5626.8811000148.0463.764.9
ICTP9238M48BTwo Ball4836~720.6631.681200016468.5369.5
ICTP9238H48BTwo Ball4836~721.0550.413500181.2584.1771.8

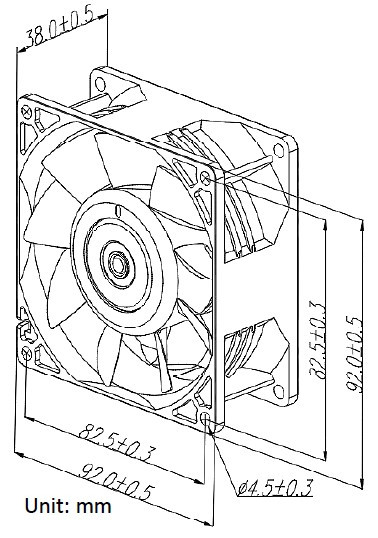

Dimension Drawing

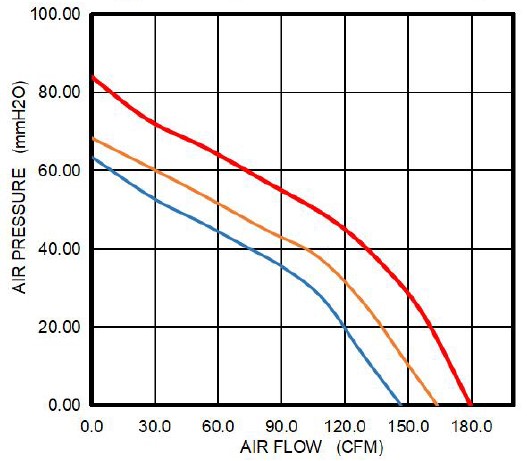

PQ Curve

dim a9238 pq a9238
