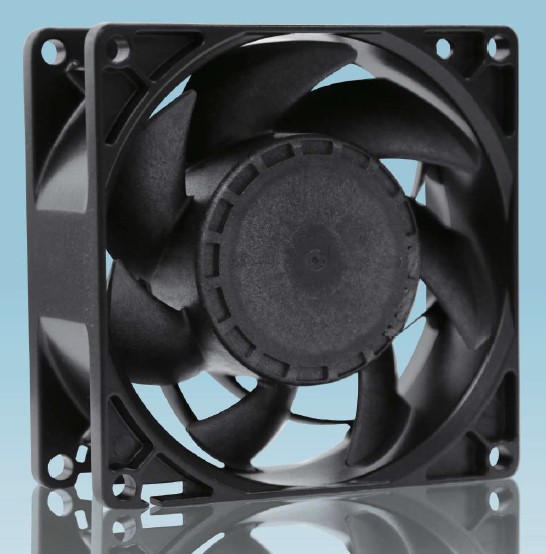

9238 Axial Series A2
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
---|---|---|---|---|---|---|---|---|---|
ICTH9238BL48S | Sleeve | 48 | 36.0 to 75.0 | 0.46 | 22.08 | 8000 | 135.31 | 1.415 | 61 |
ICTH9238BM48S | Sleeve | 48 | 36.0 to 75.0 | 0.65 | 31.2 | 9000 | 152.22 | 1.792 | 63.5 |

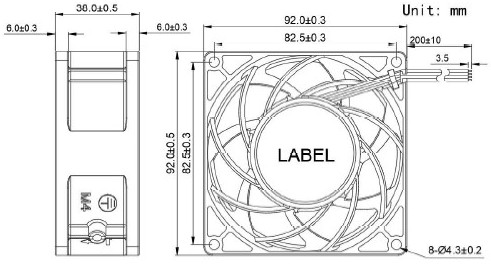

Dimension Drawing |

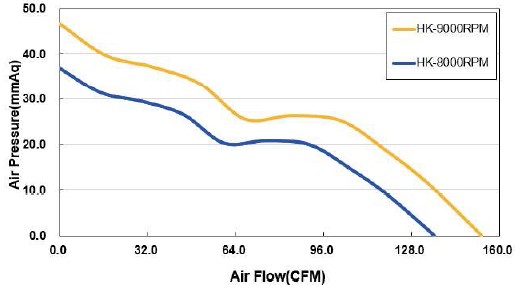

PQ Curve |
