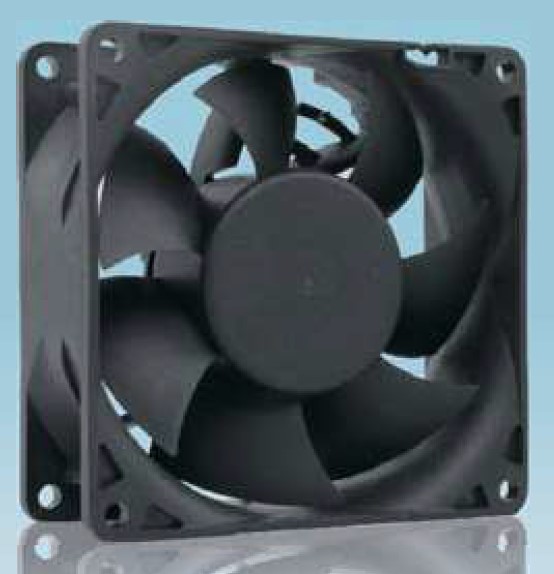

9238 Axial Series A1

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH9238AL12SSleeve125.0 to
ICTH9238AM12SSleeve125.0 to 13.80.455.4400081.550.33947.2
ICTH9238AH12SSleeve125.0 to 13.80.657.85000102.000.53152.0

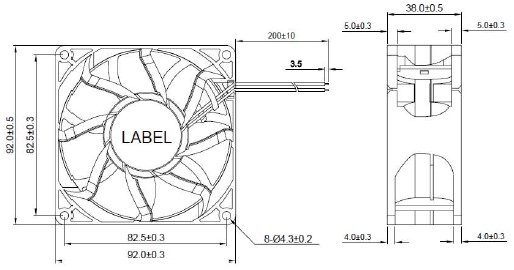

Dimension Drawing

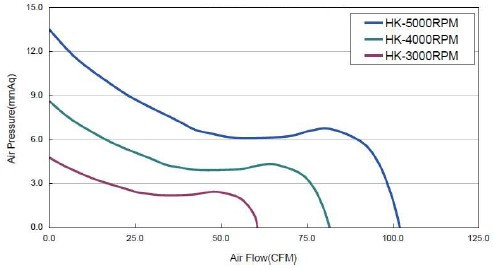

PQ Curve

9238A 9238B
