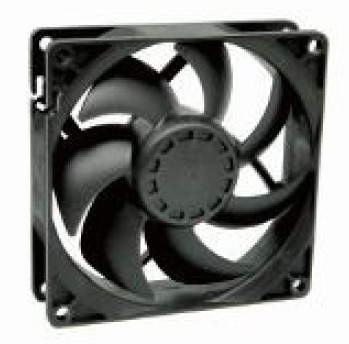

9225 Axial Series Y2

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)

Feature option:

auto restart, limited current, rotate detection, temperature control

Item No.	Bearing Type	Operating Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated Input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)
ICTY9225BZ12C	CycleSeal	12	7.0 ~ 13.8	0.75	9	5500	96.56	12.23	48.86
ICTY9225BY12C	CycleSeal	12	7.0 ~ 13.8	0.64	7.68	4800	84.27	9.32	45.9
ICTY9225BX12C	CycleSeal	12	7.0 ~ 13.8	0.44	5.28	4200	73.73	7.13	43
ICTY9225BH12C	CycleSeal	12	7.0 ~ 13.8	0.34	4.08	3600	63.2	5.24	39.65
ICTY9225BM12C	CycleSeal	12	7.0 ~ 13.8	0.22	2.64	2800	49.16	3.17	34.2
ICTY9225BL12C	CycleSeal	12	7.0 ~ 13.8	0.09	1.08	2000	35.11	1.62	26.89
ICTY9225BZ24C	CycleSeal	24	14.0 ~ 27.6	0.46	11.04	5500	96.56	12.23	48.86
ICTY9225BY24C	CycleSeal	24	14.0 ~ 27.6	0.29	6.96	4800	84.27	9.32	45.9
ICTY9225BX24C	CycleSeal	24	14.0 ~ 27.6	0.22	5.28	4200	73.73	7.13	43
ICTY9225BH24C	CycleSeal	24	14.0 ~ 27.6	0.18	4.32	3600	63.2	5.24	39.65
ICTY9225BM24C	CycleSeal	24	14.0 ~ 27.6	0.13	3.12	2800	49.16	3.17	34.2
ICTY9225BL24C	CycleSeal	24	14.0 ~ 27.6	0.05	1.2	2000	35.11	1.62	26.89
ICTY9225BZ48C	CycleSeal	48	36 ~ 72	0.27	12.96	5500	96.56	12.23	48.86
ICTY9225BY48C	CycleSeal	48	36 ~ 72	0.2	9.6	4800	84.27	9.32	45.9
ICTY9225BX48C	CycleSeal	48	36 ~ 72	0.16	7.68	4200	73.73	7.13	43
ICTY9225BH48C	CycleSeal	48	36 ~ 72	0.13	6.24	3600	63.2	5.24	39.65
ICTY9225BM48C	CycleSeal	48	36 ~ 72	0.09	4.32	2800	49.16	3.17	34.2
ICTY9225BL48C	CycleSeal	48	36 ~ 72	0.03	1.44	2000	35.11	1.62	26.89
ICTY9225BZ12B	Two Ball	12	7.0 ~ 13.8	0.75	9	5500	96.56	12.23	48.86
ICTY9225BY12B	Two Ball	12	7.0 ~ 13.8	0.64	7.68	4800	84.27	9.32	45.9
ICTY9225BX12B	Two Ball	12	7.0 ~ 13.8	0.44	5.28	4200	73.73	7.13	43
ICTY9225BH12B	Two Ball	12	7.0 ~ 13.8	0.34	4.08	3600	63.2	5.24	39.65
ICTY9225BM12B	Two Ball	12	7.0 ~ 13.8	0.22	2.64	2800	49.16	3.17	34.2
ICTY9225BL12B	Two Ball	12	7.0 ~ 13.8	0.09	1.08	2000	35.11	1.62	26.89
ICTY9225BZ24B	Two Ball	24	14.0 ~ 27.6	0.46	11.04	5500	96.56	12.23	48.86
ICTY9225BY24B	Two Ball	24	14.0 ~ 27.6	0.29	6.96	4800	84.27	9.32	45.9
ICTY9225BX24B	Two Ball	24	14.0 ~ 27.6	0.22	5.28	4200	73.73	7.13	43
ICTY9225BH24B	Two Ball	24	14.0 ~ 27.6	0.18	4.32	3600	63.2	5.24	39.65
ICTY9225BM24B	Two Ball	24	14.0 ~ 27.6	0.13	3.12	2800	49.16	3.17	34.2
ICTY9225BL24B	Two Ball	24	14.0 ~ 27.6	0.05	1.2	2000	35.11	1.62	26.89
ICTY9225BZ48B	Two Ball	48	36 ~ 72	0.27	12.96	5500	96.56	12.23	48.86
ICTY9225BY48B	Two Ball	48	36 ~ 72	0.2	9.6	4800	84.27	9.32	45.9
ICTY9225BX48B	Two Ball	48	36 ~ 72	0.16	7.68	4200	73.73	7.13	43
ICTY9225BH48B	Two Ball	48	36 ~ 72	0.13	6.24	3600	63.2	5.24	39.65
ICTY9225BM48B	Two Ball	48	36 ~ 72	0.09	4.32	2800	49.16	3.17	34.2
ICTY9225BL48B	Two Ball	48	36 ~ 72	0.03	1.44	2000	35.11	1.62	26.89
