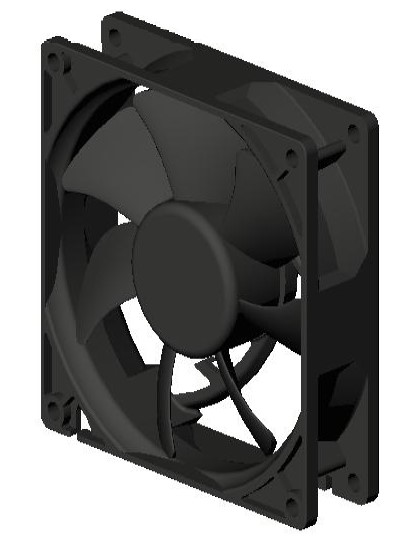

9225 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
---|---|---|---|---|---|---|---|---|---|
ICTP9225L12B | Two Ball | 12 | 7~13.2 | 0.25 | 3 | 3000 | 59.74 | 4.37 | 36 |
ICTP9225M12B | Two Ball | 12 | 7~13.2 | 0.5 | 6 | 4000 | 79.65 | 7.76 | 44 |
ICTP9225L12F | FDB | 12 | 7~13.2 | 0.25 | 3 | 3000 | 59.74 | 4.37 | 36 |
ICTP9225M12F | FDB | 12 | 7~13.2 | 0.5 | 6 | 4000 | 79.65 | 7.76 | 44 |

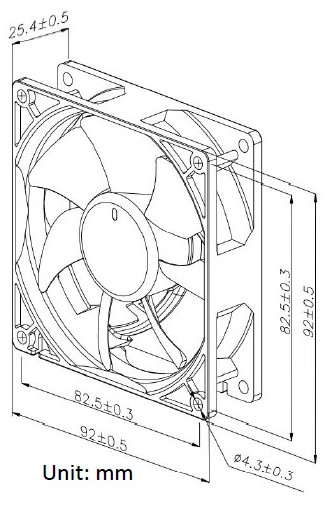

Dimension Drawing |

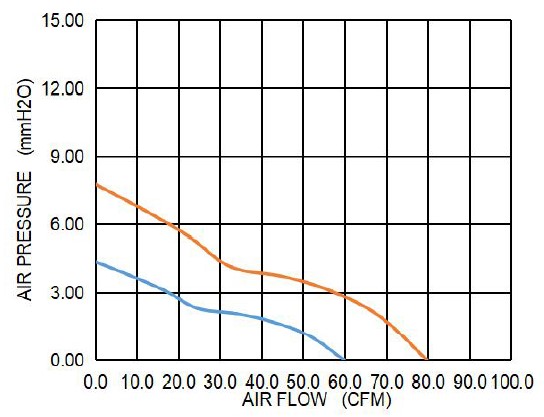

PQ Curve |
