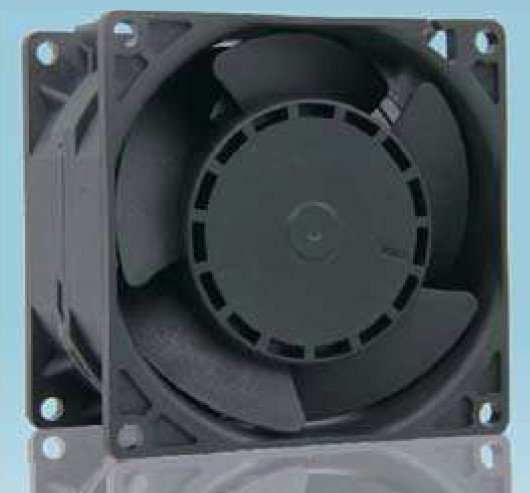

8056 Axial Series A
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
---|---|---|---|---|---|---|---|---|---|
ICTH8056M12B | Two Ball | 12 | 7.0 to 13.8 | 1.34 | 16.08 | 8000/7400 | 54.11 | 2.103 | 64.2 |
ICTH8056H12B | Two Ball | 12 | 7.0 to 13.8 | 2.40 | 28.80 | 9600/8200 | 62.18 | 3.274 | 67.3 |

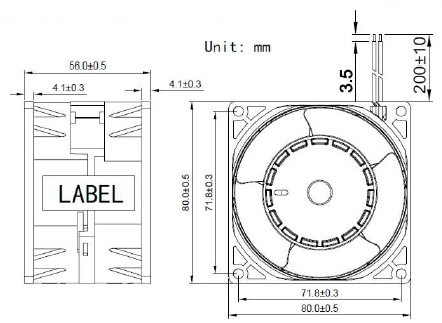

Dimension Drawing |

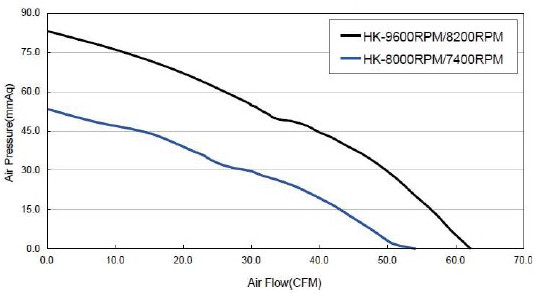

PQ Curve |
