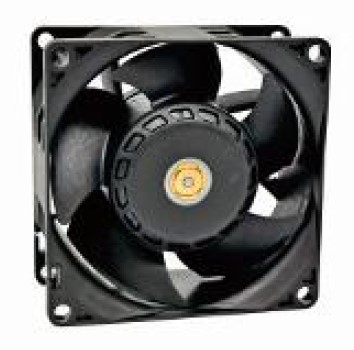

8038 Axial Series Y3
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY8038CP12B | Two Ball | 12 | 7.0 ~ 13.8 | 3.8 | 45.6 | 14200 | 145.4 | 86.55 | 71.7 |
| ICTY8038CZ12B | Two Ball | 12 | 7.0 ~ 13.8 | 3.1 | 37.2 | 13000 | 133.12 | 81.32 | 68 |
| ICTY8038CY12B | Two Ball | 12 | 7.0 ~ 13.8 | 2.1 | 25.2 | 11000 | 112.23 | 75.4 | 65.5 |
| ICTY8038CX12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.3 | 15.6 | 9000 | 91.24 | 51.67 | 56.6 |
| ICTY8038CH12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.95 | 11.4 | 7500 | 76.03 | 35.88 | 54.3 |
| ICTY8038CM12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.62 | 7.44 | 6000 | 60.6 | 23.02 | 49.1 |
| ICTY8038CL12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.42 | 5.04 | 4500 | 44.28 | 12.64 | 41.7 |
| ICTY8038CP24B | Two Ball | 24 | 14.0 ~ 27.6 | 1.9 | 45.6 | 14200 | 145.4 | 86.55 | 71.7 |
| ICTY8038CZ24B | Two Ball | 24 | 14.0 ~ 27.6 | 1.55 | 37.2 | 13000 | 133.12 | 81.32 | 68 |
| ICTY8038CY24B | Two Ball | 24 | 14.0 ~ 27.6 | 1.05 | 25.2 | 11000 | 112.23 | 75.4 | 65.5 |
| ICTY8038CX24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.65 | 15.6 | 9000 | 91.24 | 51.67 | 56.6 |
| ICTY8038CH24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.47 | 11.28 | 7500 | 76.03 | 35.88 | 54.3 |
| ICTY8038CM24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.31 | 7.44 | 6000 | 60.6 | 23.02 | 49.1 |
| ICTY8038CL24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.21 | 5.04 | 4500 | 44.28 | 12.64 | 41.7 |
| ICTY8038CP48B | Two Ball | 48 | 36 ~ 72 | 0.95 | 45.6 | 14200 | 145.4 | 86.55 | 71.7 |
| ICTY8038CZ48B | Two Ball | 48 | 36 ~ 72 | 0.77 | 36.96 | 13000 | 133.12 | 81.32 | 68 |
| ICTY8038CY48B | Two Ball | 48 | 36 ~ 72 | 0.52 | 24.96 | 11000 | 112.23 | 75.4 | 65.5 |
| ICTY8038CX48B | Two Ball | 48 | 36 ~ 72 | 0.32 | 15.36 | 9000 | 91.24 | 51.67 | 56.6 |
| ICTY8038CH48B | Two Ball | 48 | 36 ~ 72 | 0.24 | 11.52 | 7500 | 76.03 | 35.88 | 54.3 |
| ICTY8038CM48B | Two Ball | 48 | 36 ~ 72 | 0.15 | 7.2 | 6000 | 60.6 | 23.02 | 49.1 |
| ICTY8038CL48B | Two Ball | 48 | 36 ~ 72 | 0.1 | 4.8 | 4500 | 44.28 | 12.64 | 41.7 |
