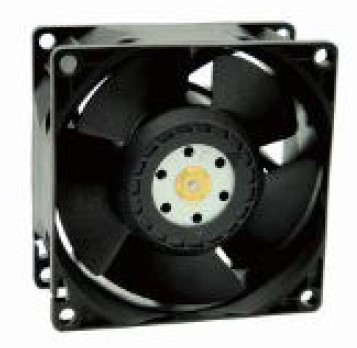

8038 Axial Series Y2
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY8038BP12B | Two Ball | 12 | 7.0 ~ 13.8 | 2.7 | 32.4 | 15000 | 114.28 | 92.4 | 66.23 |
| ICTY8038BZ12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.82 | 21.84 | 13000 | 98.43 | 68.55 | 63.13 |
| ICTY8038BY12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.52 | 18.24 | 11000 | 84.28 | 66.66 | 59.5 |
| ICTY8038BX12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.12 | 13.44 | 9000 | 68.96 | 44.62 | 55.14 |
| ICTY8038BH12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.97 | 11.64 | 7500 | 57.46 | 30.99 | 51.18 |
| ICTY8038BM12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.77 | 9.24 | 6000 | 45.97 | 19.83 | 46.34 |
| ICTY8038BL12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.62 | 7.44 | 4500 | 34.48 | 11.16 | 40.09 |
| ICTY8038BP24B | Two Ball | 24 | 14.0 ~ 27.6 | 1.22 | 29.28 | 15000 | 114.28 | 92.4 | 66.23 |
| ICTY8038BZ24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.96 | 23.04 | 13000 | 98.43 | 68.55 | 63.13 |
| ICTY8038BY24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.73 | 17.52 | 11000 | 84.28 | 66.66 | 59.5 |
| ICTY8038BX24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.54 | 12.96 | 9000 | 68.96 | 44.62 | 55.14 |
| ICTY8038BH24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.47 | 11.28 | 7500 | 57.46 | 30.99 | 51.18 |
| ICTY8038BM24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.37 | 8.88 | 6000 | 45.97 | 19.83 | 46.34 |
| ICTY8038BL24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.3 | 7.2 | 4500 | 34.48 | 11.16 | 40.09 |
| ICTY8038BP48B | Two Ball | 48 | 36 ~ 72 | 0.62 | 29.76 | 15000 | 114.28 | 92.4 | 66.23 |
| ICTY8038BZ48B | Two Ball | 48 | 36 ~ 72 | 0.49 | 23.52 | 13000 | 98.43 | 68.55 | 63.13 |
| ICTY8038BY48B | Two Ball | 48 | 36 ~ 72 | 0.39 | 18.72 | 11000 | 84.28 | 66.66 | 59.5 |
| ICTY8038BX48B | Two Ball | 48 | 36 ~ 72 | 0.3 | 14.4 | 9000 | 68.96 | 44.62 | 55.14 |
| ICTY8038BH48B | Two Ball | 48 | 36 ~ 72 | 0.25 | 12 | 7500 | 57.46 | 30.99 | 51.18 |
| ICTY8038BM48B | Two Ball | 48 | 36 ~ 72 | 0.22 | 10.56 | 6000 | 45.97 | 19.83 | 46.34 |
| ICTY8038BL48B | Two Ball | 48 | 36 ~ 72 | 0.17 | 8.16 | 4500 | 34.48 | 11.16 | 40.09 |
