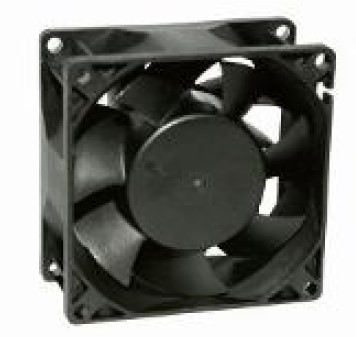

8038 Axial Series Y1
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY8038AX12S | Sleeve | 12 | 7.0 ~ 13.8 | 1.6 | 19.2 | 7500 | 92.66 | 33.39 | 58.5 |
| ICTY8038AH12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.5 | 6 | 5000 | 61.77 | 14.84 | 49.8 |
| ICTY8038AM12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.25 | 3 | 4000 | 49.42 | 9.5 | 44.95 |
| ICTY8038AL12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.19 | 2.28 | 3000 | 37.06 | 5.34 | 38.71 |
| ICTY8038AX24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.72 | 17.28 | 7500 | 92.66 | 33.39 | 58.5 |
| ICTY8038AH24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.26 | 6.24 | 5000 | 61.77 | 14.84 | 49.8 |
| ICTY8038AM24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.14 | 3.36 | 4000 | 49.42 | 9.5 | 44.95 |
| ICTY8038AL24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.1 | 2.4 | 3000 | 37.06 | 5.34 | 38.71 |
| ICTY8038AX48S | Sleeve | 48 | 36 ~ 72 | 0.36 | 17.28 | 7500 | 92.66 | 33.39 | 58.5 |
| ICTY8038AH48S | Sleeve | 48 | 36 ~ 72 | 0.13 | 6.24 | 5000 | 61.77 | 14.84 | 49.8 |
| ICTY8038AM48S | Sleeve | 48 | 36 ~ 72 | 0.09 | 4.32 | 4000 | 49.42 | 9.5 | 44.95 |
| ICTY8038AL48S | Sleeve | 48 | 36 ~ 72 | 0.07 | 3.36 | 3000 | 37.06 | 6.36 | 38.71 |
| ICTY8038AX12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.6 | 19.2 | 7500 | 92.66 | 33.39 | 58.5 |
| ICTY8038AH12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.5 | 6 | 5000 | 61.77 | 14.84 | 49.8 |
| ICTY8038AM12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.25 | 3 | 4000 | 49.42 | 9.5 | 44.95 |
| ICTY8038AL12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.19 | 2.28 | 3000 | 37.06 | 5.34 | 38.71 |
| ICTY8038AX24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.72 | 17.28 | 7500 | 92.66 | 33.39 | 58.5 |
| ICTY8038AH24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.26 | 6.24 | 5000 | 61.77 | 14.84 | 49.8 |
| ICTY8038AM24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.14 | 3.36 | 4000 | 49.42 | 9.5 | 44.95 |
| ICTY8038AL24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.1 | 2.4 | 3000 | 37.06 | 5.34 | 38.71 |
| ICTY8038AX48B | Two Ball | 48 | 36 ~ 72 | 0.36 | 17.28 | 7500 | 92.66 | 33.39 | 58.5 |
| ICTY8038AH48B | Two Ball | 48 | 36 ~ 72 | 0.13 | 6.24 | 5000 | 61.77 | 14.84 | 49.8 |
| ICTY8038AM48B | Two Ball | 48 | 36 ~ 72 | 0.09 | 4.32 | 4000 | 49.42 | 9.5 | 44.95 |
| ICTY8038AL48B | Two Ball | 48 | 36 ~ 72 | 0.07 | 3.36 | 3000 | 37.06 | 6.36 | 38.71 |
