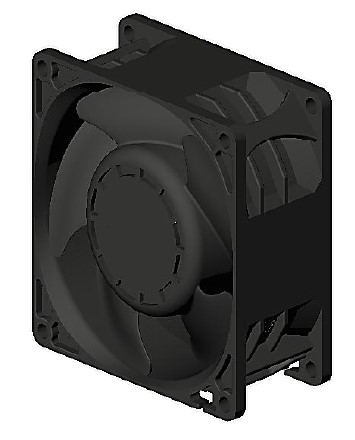

8038 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP8038L12B | Two Ball | 12 | 10.8～13.2 | 1.3 | 15.6 | 8000 | 66.12 | 35.5 | 57.7 |
| ICTP8038M12B | Two Ball | 12 | 10.8～13.2 | 1.8 | 21.6 | 10000 | 83.38 | 52.1 | 61.6 |
| ICTP8038H12B | Two Ball | 12 | 10.8～13.2 | 2.5 | 30 | 12000 | 101.47 | 70.32 | 64.6 |
| ICTP8038X12B | Two Ball | 12 | 10.8～13.2 | 3.5 | 42 | 15000 | 123.69 | 111.34 | 72.5 |

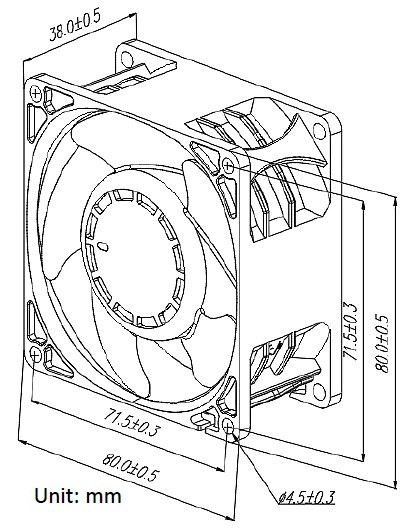

Dimension Drawing |

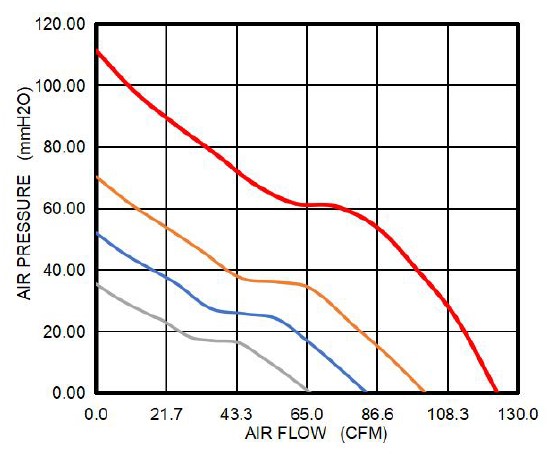

PQ Curve |
 |
 |
