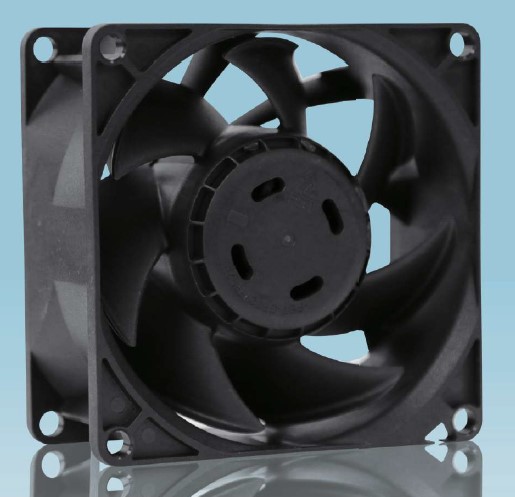

8038 Axial Series A5

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH8038EL48BTwo Ball4836.0 to 60.00.2110.08600079.260.70951.7
ICTH8038EM48BTwo Ball4836.0 to 60.00.3617.288000105.681.26158.0
ICTH8038EH48BTwo Ball4836.0 to 60.00.6330.249500126.641.81862.9

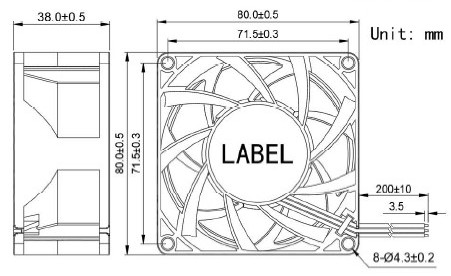

Dimension Drawing

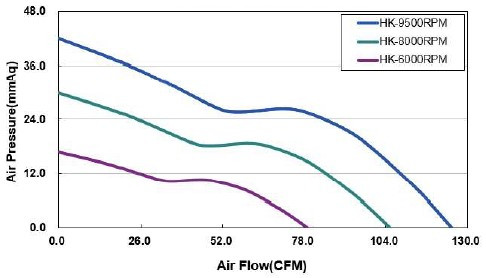

PQ Curve

8038A5 8038B5
