8038 Axial Series A4

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH8038DL12BTwo Ball127.0 to 13.80.506.00700083.161.95454.5
ICTH8038DM12BTwo Ball127.0 to 13.80.9211.04900068.041.30860.0
ICTH8038DH12BTwo Ball127.0 to 13.81.5518.601100083.161.95464.0
ICTH8038DX12BTwo Ball127.0 to 13.82.2026.401300098.282.73068.0
ICTH8038DY12BTwo Ball127.0 to 13.83.6043.2015000113.403.63471.0

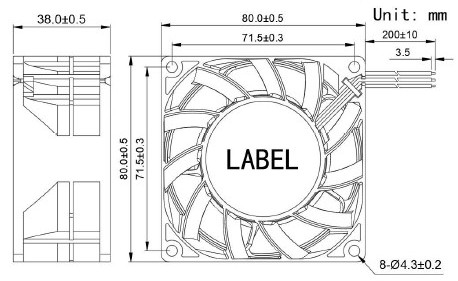

Dimension Drawing

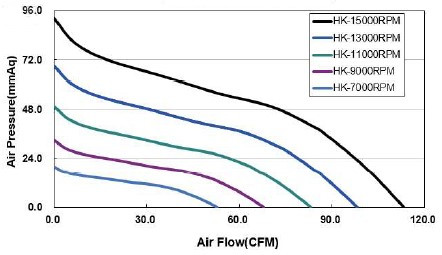

PQ Curve

8038A4 8038B4
