8038 Axial Series A3
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH8038CL12B | Two Ball | 12 | 7.0 to 13.8 | 0.30 | 3.60 | 6000 | 59.84 | 0.722 | 44.5 |
| ICTH8038CM12B | Two Ball | 12 | 7.0 to 13.8 | 0.67 | 8.04 | 8000 | 79.79 | 1.284 | 54.5 |
| ICTH8038CH12B | Two Ball | 12 | 7.0 to 13.8 | 1.15 | 13.80 | 9500 | 94.75 | 1.811 | 61.0 |

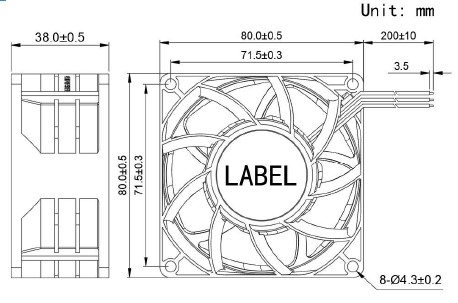

Dimension Drawing |

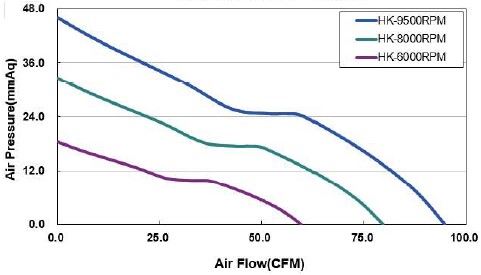

PQ Curve |
 |
 |
