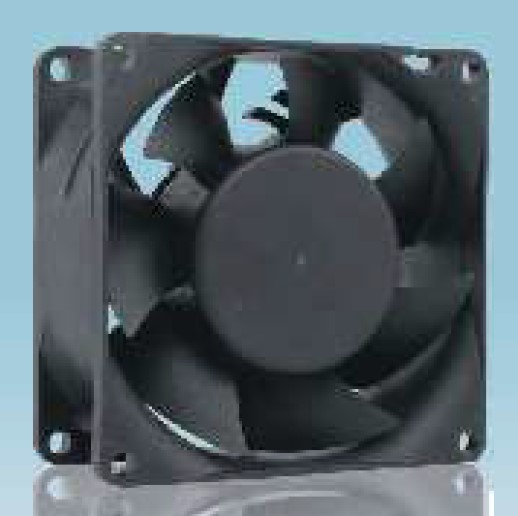

8038 Axial Series A1

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH8038AL12BTwo Ball127.0 to 13.80.192.28340042.830.21842.2
ICTH8038AM12BTwo Ball127.0 to 13.80.333.96420054.970.33445.3
ICTH8038AH12BTwo Ball127.0 to 13.80.465.52490066.990.44349.0
ICTH8038AX12BTwo Ball127.0 to 13.80.688.16570075.070.59252.2

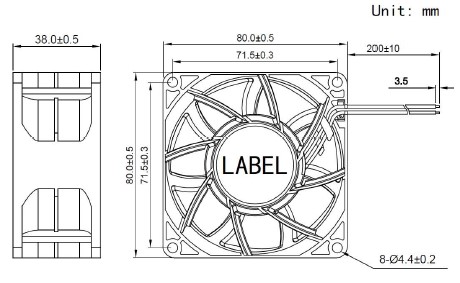

Dimension Drawing

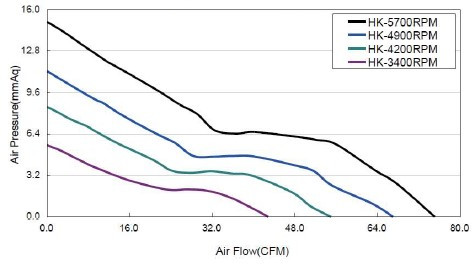

PQ Curve

8038A 8038B
