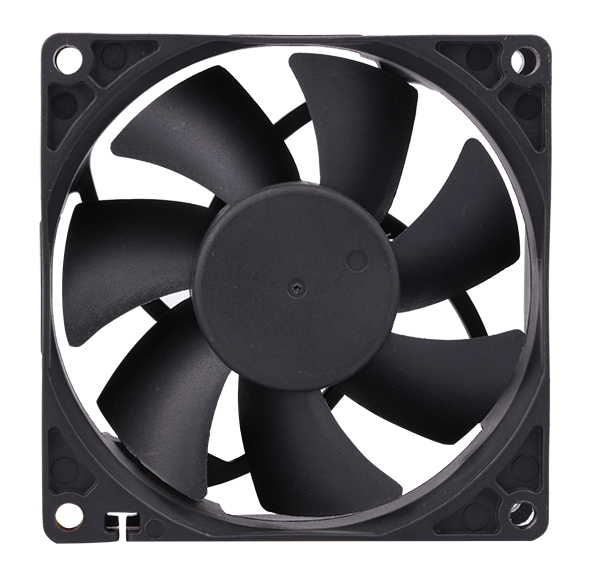

8025 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)

Feature option:

auto restart, limited current, rotate detection, temperature control

MODEL	Bearing Type	Rated Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)
ICTA8025L05S	Sleeve	5	4.5 ~ 5.5	0.24	1.20	2400	27.90	2.59	25
ICTA8025L12S	Sleeve	12	7 ~ 13.8	0.09	1.08	2400	27.90	2.59	25
ICTA8025L24S	Sleeve	24	14 ~ 27.6	0.05	1.20	2400	27.90	2.59	25
ICTA8025L48S	Sleeve	48	28 ~ 56	0.06	2.88	2400	27.90	2.59	25
ICTA8025M05S	Sleeve	5	4.5 ~ 5.5	0.33	1.65	2700	31.43	3.28	28
ICTA8025M12S	Sleeve	12	7 ~ 13.8	0.12	1.44	2700	31.43	3.28	28
ICTA8025M24S	Sleeve	24	14 ~ 27.6	0.06	1.44	2700	31.43	3.28	28
ICTA8025M48S	Sleeve	48	28 ~ 56	0.07	3.36	2700	31.43	3.28	28
ICTA8025H05S	Sleeve	5	4.5 ~ 5.5	0.43	2.15	3000	35.31	4.04	31
ICTA8025H12S	Sleeve	12	7 ~ 13.8	0.16	1.92	3000	35.31	4.04	31
ICTA8025H24S	Sleeve	24	14 ~ 27.6	0.07	1.68	3000	35.31	4.04	31
ICTA8025H48S	Sleeve	48	28 ~ 56	0.07	3.36	3000	35.31	4.04	31
ICTA8025X12B	Two Ball	12	7 ~ 13.8	0.20	2.40	3250	37.43	4.59	34
ICTA8025X24B	Two Ball	24	14 ~ 27.6	0.09	2.16	3250	37.43	4.59	34
ICTA8025X48B	Two Ball	48	28 ~ 56	0.08	3.84	3250	37.43	4.59	34
ICTA8025Y12B	Two Ball	12	7 ~ 13.8	0.26	3.12	3600	42.02	5.51	38
ICTA8025Y24B	Two Ball	24	14 ~ 27.6	0.14	3.36	3600	42.02	5.51	38
ICTA8025Y48B	Two Ball	48	28 ~ 56	0.07	3.36	3600	42.02	5.51	38
ICTA8025Z12B	Two Ball	12	7 ~ 13.8	0.34	4.08	4000	46.62	6.78	40
ICTA8025Z24B	Two Ball	24	14 ~ 27.6	0.16	3.84	4000	46.62	6.78	40
ICTA8025Z48B	Two Ball	48	28 ~ 56	0.08	3.84	4000	46.62	6.78	40
