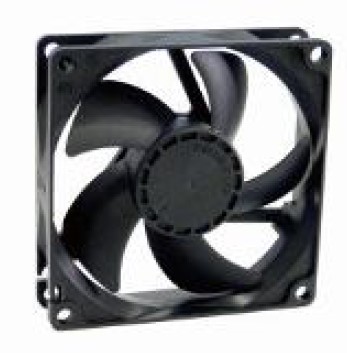

8020 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY8020X12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.36 | 4.32 | 5500 | 53.94 | 8.95 | 44.47 |
| ICTY8020H12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.21 | 2.52 | 4500 | 44.14 | 5.99 | 40.11 |
| ICTY8020M12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.11 | 1.32 | 3500 | 34.33 | 3.63 | 34.65 |
| ICTY8020L12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.04 | 0.48 | 2500 | 24.52 | 1.85 | 27.35 |
| ICTY8020X24C | CycleSeal | 24 | 14.0 ~ 27.6 | 0.19 | 4.56 | 5500 | 53.94 | 8.95 | 44.47 |
| ICTY8020H24C | CycleSeal | 24 | 14.0 ~ 27.6 | 0.12 | 2.88 | 4500 | 44.14 | 5.99 | 40.11 |
| ICTY8020M24C | CycleSeal | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 3500 | 34.33 | 3.63 | 34.65 |
| ICTY8020L24C | CycleSeal | 24 | 14.0 ~ 27.6 | 0.03 | 0.72 | 2500 | 24.52 | 1.85 | 27.35 |
| ICTY8020X12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.36 | 4.32 | 5500 | 53.94 | 8.95 | 44.47 |
| ICTY8020H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.21 | 2.52 | 4500 | 44.14 | 5.99 | 40.11 |
| ICTY8020M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.11 | 1.32 | 3500 | 34.33 | 3.63 | 34.65 |
| ICTY8020L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.04 | 0.48 | 2500 | 24.52 | 1.85 | 27.35 |
| ICTY8020X24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.19 | 4.56 | 5500 | 53.94 | 8.95 | 44.47 |
| ICTY8020H24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.12 | 2.88 | 4500 | 44.14 | 5.99 | 40.11 |
| ICTY8020M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 3500 | 34.33 | 3.63 | 34.65 |
| ICTY8020L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.03 | 0.72 | 2500 | 24.52 | 1.85 | 27.35 |
