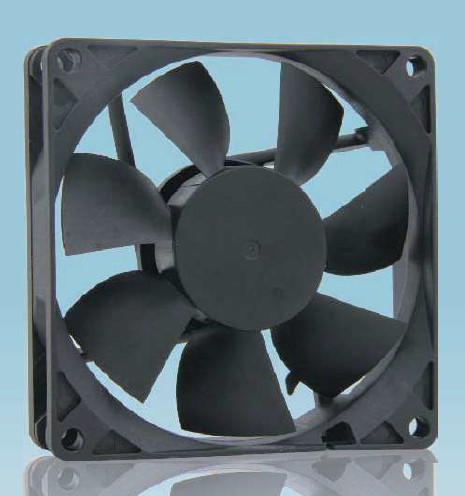

8020 Axial Series A

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH8020L12SSleeve125.0 to 13.80.111.32250030.400.08130.0
ICTH8020M12SSleeve125.0 to 13.80.283.36300034.750.10635.0
ICTHB020H12SSleeve125.0 to 13.80.404.80400046.330.18842.5

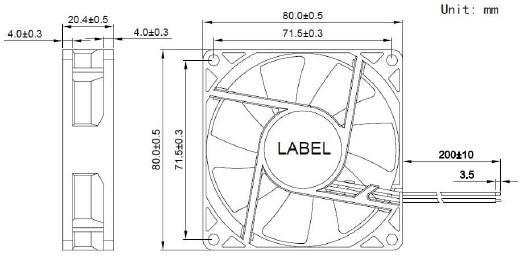

Dimension Drawing

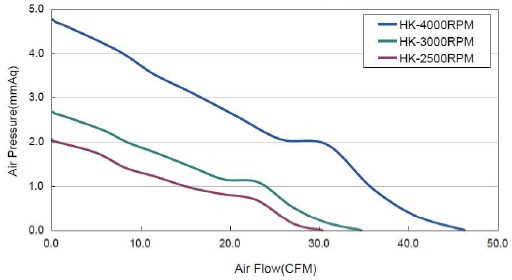

PQ Curve

8020A 8020B
