8015 Axial Series X

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTP8015L12BTwo Ball127~13.20.040.48200021.591.2824
ICTP8015M12BTwo Ball127~13.20.060.72250027.612.0730
ICTP8015H12BTwo Ball127~13.20.121.44300032.922.8136.2
ICTP8015X12BTwo Ball127~13.20.172.04350037.883.740
ICTP8015L12FFDB127~13.20.040.48200021.591.2824
ICTP8015M12FFDB127~13.20.060.72250027.612.0730
ICTP8015H12FFDB127~13.20.121.44300032.922.8136.2
ICTP8015X12FFDB127~13.20.172.04350037.883.740

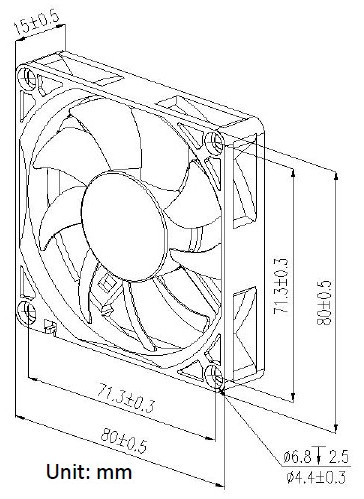

Dimension Drawing

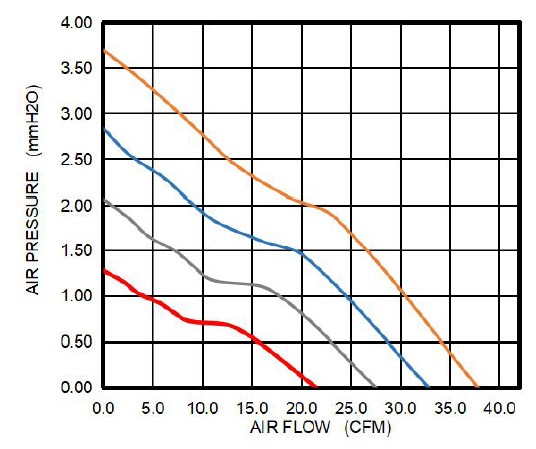

PQ Curve

dim a8015 pq a8015
