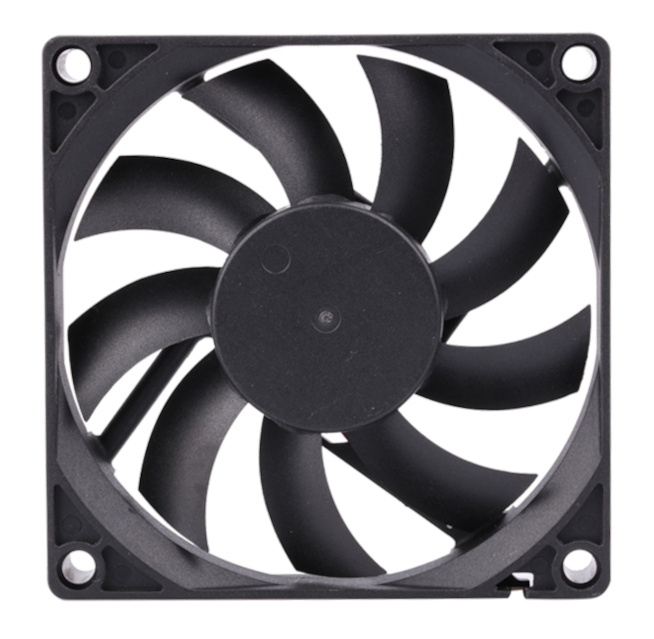

8015 Axial Fan Basic
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| MODEL | Bearing Type | Rated Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTA8015L05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.24 | 1.20 | 2500 | 24.70 | 2.20 | 27.5 |
| ICTA8015L12S | Sleeve | 12 | 7 ~ 13.8 | 0.15 | 1.80 | 2500 | 24.70 | 2.20 | 27.5 |
| ICTA8015L24S | Sleeve | 24 | 14 ~ 27.6 | 0.08 | 1.92 | 2500 | 24.70 | 2.20 | 27.5 |
| ICTA8015M05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.33 | 1.65 | 2700 | 28.30 | 2.71 | 30.5 |
| ICTA8015M12S | Sleeve | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 2700 | 28.30 | 2.71 | 30.5 |
| ICTA8015M24S | Sleeve | 24 | 14 ~ 27.6 | 0.11 | 2.64 | 2700 | 28.30 | 2.71 | 30.5 |
| ICTA8015H12S | Sleeve | 12 | 7 ~ 13.8 | 0.20 | 2.40 | 3000 | 32.50 | 3.40 | 32.5 |
| ICTA8015H24B | Two Ball | 24 | 14 ~ 27.6 | 0.13 | 3.12 | 3000 | 32.50 | 3.40 | 32.5 |
| ICTA8015X12B | Two Ball | 12 | 7 ~ 13.8 | 0.25 | 3.00 | 3300 | 34.67 | 3.95 | 36.5 |
| ICTA8015X24B | Two Ball | 24 | 14 ~ 27.6 | 0.09 | 3.84 | 3300 | 34.67 | 3.95 | 36.5 |

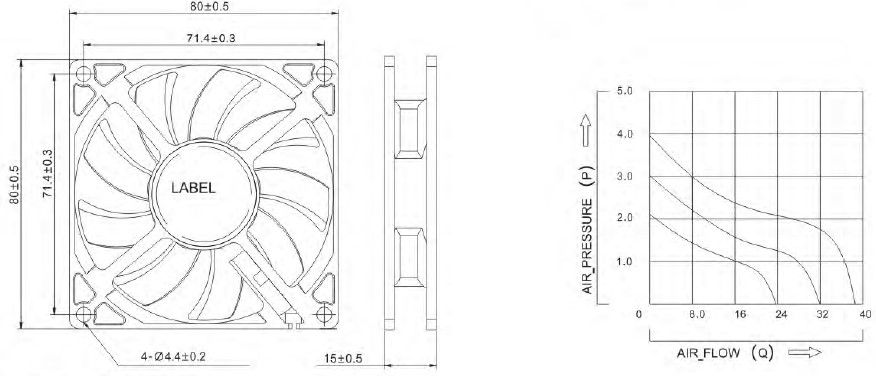

Dimension Drawing
