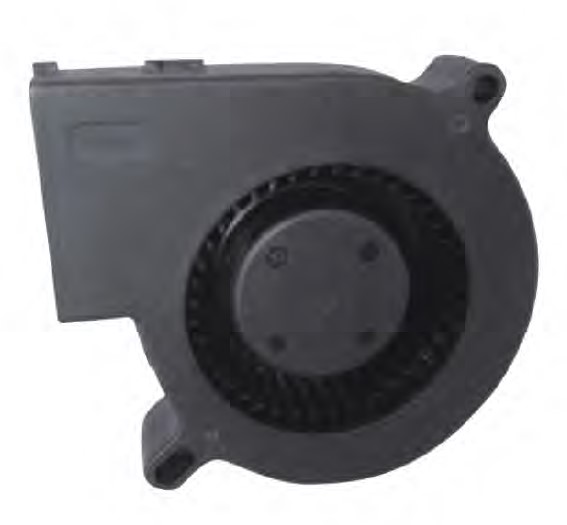

7525 Blower Basic
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| MODEL | Bearing Type | Rated Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTB7525L05S | Sleeve | 5 | 4 ~ 6 | 0.30 | 1.50 | 2500 | 9.3 | 7.80 | 31.5 |
| ICTB7525L12S | Sleeve | 12 | 7 ~ 13.2 | 0.18 | 2.16 | 2500 | 9.3 | 7.80 | 31.5 |
| ICTB7525L24S | Sleeve | 24 | 14 ~ 27.6 | 0.09 | 2.16 | 2500 | 9.3 | 7.80 | 31.5 |
| ICTB7525M12S | Sleeve | 12 | 7 ~ 13.2 | 0.26 | 3.12 | 2900 | 11.0 | 11.95 | 36.5 |
| ICTB7525M24S | Sleeve | 24 | 14 ~ 27.6 | 0.13 | 3.12 | 2900 | 11.0 | 11.95 | 36.5 |
| ICTB7525H12S | Sleeve | 12 | 7 ~ 13.2 | 0.30 | 3.60 | 3200 | 12.1 | 14.10 | 39.5 |
| ICTB7525H24B | Two Ball | 24 | 14 ~ 26.4 | 0.15 | 3.60 | 3200 | 12.1 | 14.10 | 39.5 |
| ICTB7525X12B | Two Ball | 12 | 7 ~ 13.2 | 0.30 | 3.60 | 3700 | 13.1 | 15.30 | 43.2 |
| ICTB7525X24B | Two Ball | 24 | 14 ~ 26.4 | 0.15 | 3.60 | 3700 | 13.1 | 15.30 | 43.2 |

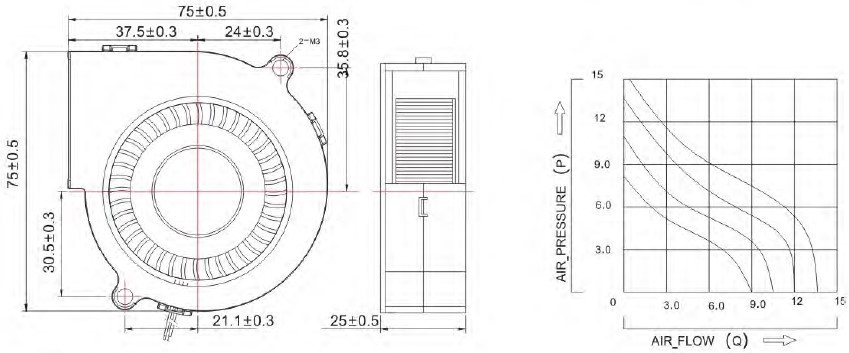

Dimension Drawing
