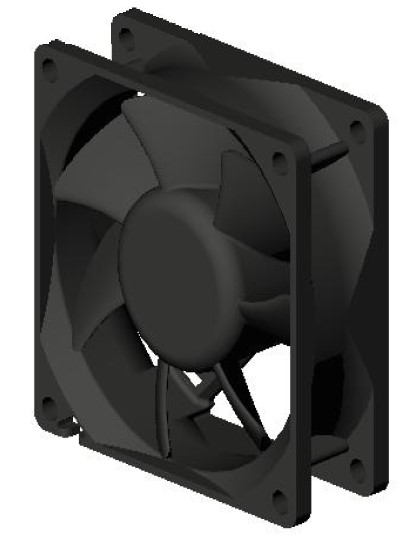

7025 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP7025L12B | Two Ball | 12 | 10.8～13.2 | 0.18 | 2.16 | 3000 | 27.93 | 3.66 | 27.6 |
| ICTP7025M12B | Two Ball | 12 | 10.8～13.2 | 0.3 | 3.6 | 4000 | 38.71 | 6.61 | 36.5 |
| ICTP7025H12B | Two Ball | 12 | 10.8～13.2 | 0.5 | 6 | 5500 | 54.06 | 12.06 | 44 |
| ICTP7025L12F | FDB | 12 | 10.8～13.2 | 0.18 | 2.16 | 3000 | 27.93 | 3.66 | 27.6 |
| ICTP7025M12F | FDB | 12 | 10.8～13.2 | 0.3 | 3.6 | 4000 | 38.71 | 6.61 | 36.5 |
| ICTP7025H12F | FDB | 12 | 10.8～13.2 | 0.5 | 6 | 5500 | 54.06 | 12.06 | 44 |
Dimension Drawing |

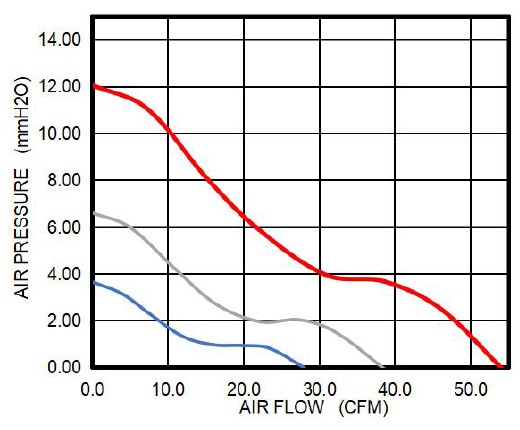

PQ Curve |
 |
 |
