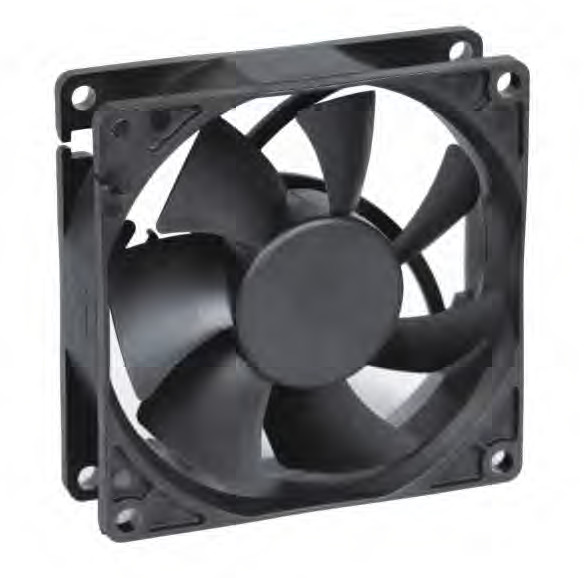

7025 Axial Fan Basic
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| MODEL | Bearing Type | Rated Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTA7025L12S | Sleeve | 12 | 7 ~ 13.8 | 0.12 | 1.44 | 2600 | 15.95 | 2.35 | 25.5 |
| ICTA7025L24S | Sleeve | 24 | 14 ~ 27.6 | 0.08 | 1.92 | 2600 | 15.95 | 2.35 | 25.5 |
| ICTA7025L48S | Sleeve | 48 | 28 ~ 56 | 0.04 | 1.92 | 2600 | 15.95 | 2.35 | 25.5 |
| ICTA7025M12S | Sleeve | 12 | 7 ~ 13.8 | 0.15 | 1.80 | 3000 | 19.80 | 3.05 | 28.5 |
| ICTA7025M24S | Sleeve | 24 | 14 ~ 27.6 | 0.09 | 2.16 | 3000 | 19.80 | 3.05 | 28.5 |
| ICTA7025M48S | Sleeve | 48 | 28 ~ 56 | 0.05 | 2.40 | 3000 | 19.80 | 3.05 | 28.5 |
| ICTA7025H12S | Sleeve | 12 | 7 ~ 13.8 | 0.20 | 2.40 | 3600 | 23.10 | 4.40 | 33.0 |
| ICTA7025H24S | Sleeve | 24 | 14 ~ 27.6 | 0.11 | 2.64 | 3600 | 23.10 | 4.40 | 33.0 |
| ICTA7025H48B | Two Ball | 48 | 28 ~ 56 | 0.06 | 2.88 | 3600 | 23.10 | 4.40 | 33.0 |
| ICTA7025X12B | Two Ball | 12 | 7 ~ 13.8 | 0.25 | 3.00 | 4000 | 25.95 | 5.30 | 36.5 |
| ICTA7025X24B | Two Ball | 24 | 14 ~ 27.6 | 0.14 | 3.36 | 4000 | 25.95 | 5.30 | 36.5 |
| ICTA7025X48B | Two Ball | 48 | 28 ~ 56 | 0.08 | 3.84 | 4000 | 25.95 | 5.30 | 36.5 |

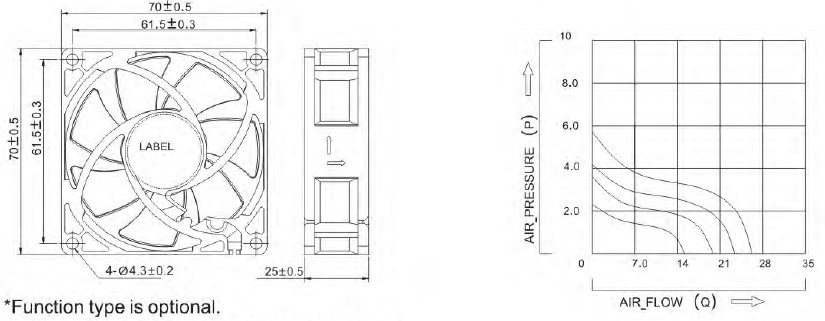

Dimension Drawing
