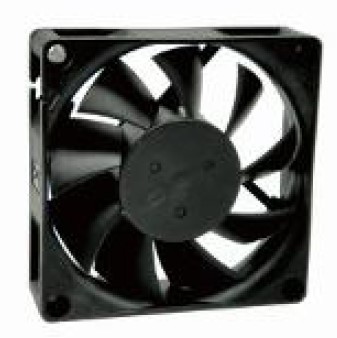

7020 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY7020H12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.38 | 4.56 | 5000 | 43.2 | 6.83 | 41.5 |
| ICTY7020M12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.22 | 2.64 | 4000 | 34.56 | 4.37 | 36.6 |
| ICTY7020L12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.11 | 1.32 | 3000 | 25.92 | 2.46 | 30.4 |
| ICTY7020H24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.19 | 4.56 | 5000 | 43.2 | 6.83 | 41.5 |
| ICTY7020M24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.11 | 2.64 | 4000 | 34.56 | 4.37 | 36.6 |
| ICTY7020L24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 3000 | 25.92 | 2.46 | 30.4 |
| ICTY7020H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.38 | 4.56 | 5000 | 43.2 | 6.83 | 41.5 |
| ICTY7020M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.22 | 2.64 | 4000 | 34.56 | 4.37 | 36.6 |
| ICTY7020L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.11 | 1.32 | 3000 | 25.92 | 2.46 | 30.4 |
| ICTY7020H24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.19 | 4.56 | 5000 | 43.2 | 6.83 | 41.5 |
| ICTY7020M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.11 | 2.64 | 4000 | 34.56 | 4.37 | 36.6 |
| ICTY7020L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 3000 | 25.92 | 2.46 | 30.4 |
