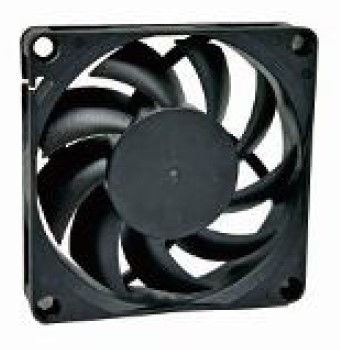

7015 Axial Series Y

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTY7015H05CCycleSeal54.5 ~ 5.50.532.65500032.15.6640.6
ICTY7015M05CCycleSeal54.5 ~ 5.50.42400025.683.6235.7
ICTY7015L05CCycleSeal54.5 ~ 5.50.170.85300019.262.0329.5
ICTY7015H12CCycleSeal127.0 ~ 13.80.222.64500032.15.6640.6
ICTY7015M12CCycleSeal127.0 ~ 13.80.172.04400025.683.6235.7
ICTY7015L12CCycleSeal127.0 ~ 13.80.070.84300019.262.0329.5
ICTY7015H24CCycleSeal2414.0 ~ 27.60.112.64500032.15.6640.6
ICTY7015M24CCycleSeal2414.0 ~ 27.60.081.92400025.683.6235.7
ICTY7015L24CCycleSeal2414.0 ~ 27.60.040.96300019.262.0329.5
ICTY7015H05BTwo Ball54.5 ~ 5.50.532.65500032.15.6640.6
ICTY7015M05BTwo Ball54.5 ~ 5.50.42400025.683.6235.7
ICTY7015L05BTwo Ball54.5 ~ 5.50.170.85300019.262.0329.5
ICTY7015H12BTwo Ball127.0 ~ 13.80.222.64500032.15.6640.6
ICTY7015M12BTwo Ball127.0 ~ 13.80.172.04400025.683.6235.7
ICTY7015L12BTwo Ball127.0 ~ 13.80.070.84300019.262.0329.5
ICTY7015H24BTwo Ball2414.0 ~ 27.60.112.64500032.15.6640.6
ICTY7015M24BTwo Ball2414.0 ~ 27.60.081.92400025.683.6235.7
ICTY7015L24BTwo Ball2414.0 ~ 27.60.040.96300019.262.0329.5
