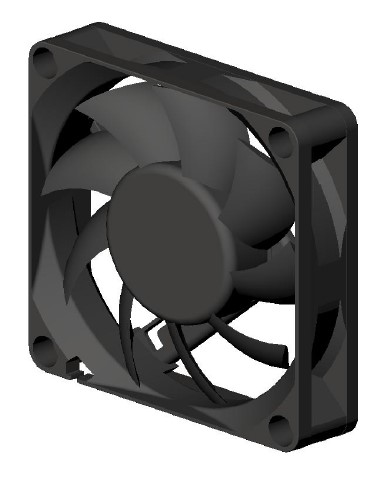

7015 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP7015L12B | Two Ball | 12 | 7～13.2 | 0.3 | 3.6 | 3600 | 26.51 | 2.87 | 32.5 |
| ICTP7015M12B | Two Ball | 12 | 7～13.2 | 0.4 | 4.8 | 4100 | 32.26 | 3.71 | 35.8 |
| ICTP7015H12B | Two Ball | 12 | 7～13.2 | 0.5 | 6 | 4500 | 35.2 | 4.51 | 38.9 |
| ICTP7015X12B | Two Ball | 12 | 7～13.2 | 0.7 | 8.4 | 5400 | 41.34 | 6.55 | 43.9 |
| ICTP7015L12F | FDB | 12 | 7～13.2 | 0.3 | 3.6 | 3600 | 26.51 | 2.87 | 32.5 |
| ICTP7015M12F | FDB | 12 | 7～13.2 | 0.4 | 4.8 | 4100 | 32.26 | 3.71 | 35.8 |
| ICTP7015H12F | FDB | 12 | 7～13.2 | 0.5 | 6 | 4500 | 35.2 | 4.51 | 38.9 |
| ICTP7015X12F | FDB | 12 | 7～13.2 | 0.7 | 8.4 | 5400 | 41.34 | 6.55 | 43.9 |

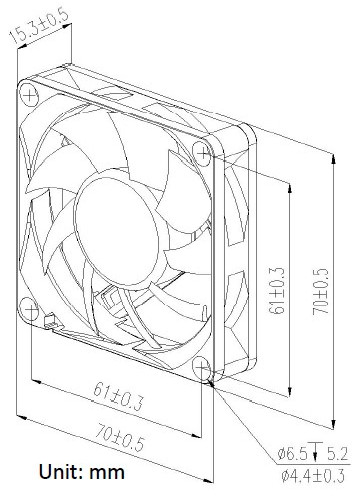

Dimension Drawing |

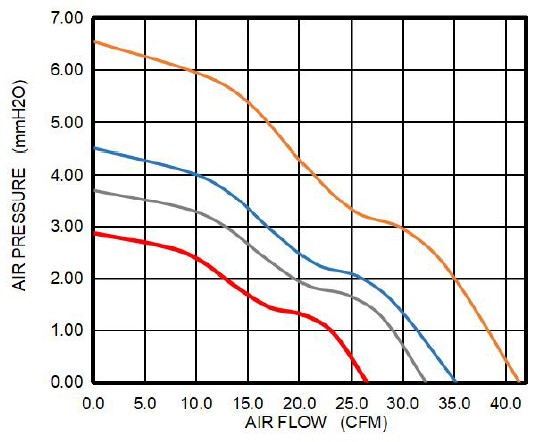

PQ Curve |
 |
 |
