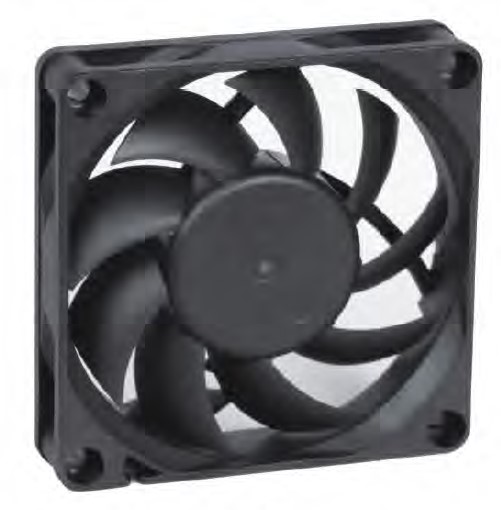

7015 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
MODELBearing TypeRated Voltage
(VDC)
Operating Voltage Range
(VDC)
Rated Current
(Amp)
Rated input Power
(Watt)
Rated Speed
(R.P.M.)
Maximum Air Flow
(CFM)
Maximum Air Pressure
(mmH2O)
Noise
(dB-A)
ICTA7015L05SSleeve54.5 ~ 5.50.221.10280023.382.2726.5
ICTA7015L12SSleeve127 ~ 13.80.151.80280023.382.2726.5
ICTA7015L24SSleeve2414 ~ 27.60.081.92280023.382.2726.5
ICTA7015M05SSleeve54.5 ~ 5.50.251.25330028.183.1231.0
ICTA7015M12SSleeve127 ~ 13.80.181.68330028.183.1231.0
ICTA7015M24SSleeve2414 ~ 27.60.102.40330028.183.1231.0
ICTA7015H12SSleeve127 ~ 13.80.253.00380033.204.1234.5
ICTA7015H24BTwo Ball2414 ~ 27.60.153.60380033.204.1234.5
ICTA7015X12BTwo Ball127 ~ 13.80.303.60430037.545.3338.5
ICTA7015X24BTwo Ball2414 ~ 27.60.184.32430037.545.3338.5

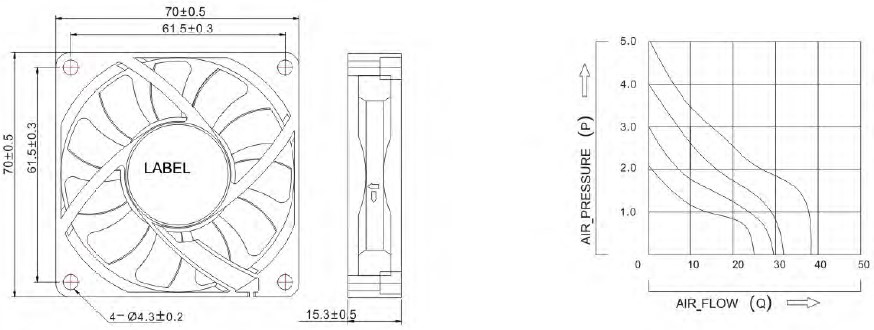

Dimension Drawing

dim A7015
