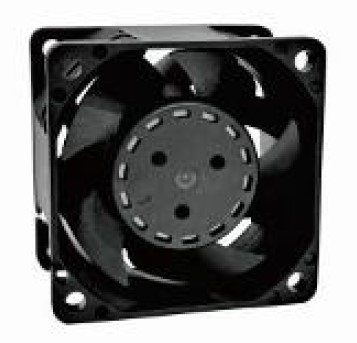

6038 Axial Series Y2
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY6038BX12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.5 | 18 | 15000 | 57.51 | 63.76 | 63.1 |
| ICTY6038BH12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.2 | 14.4 | 13500 | 51.76 | 51.65 | 60.8 |
| ICTY6038BM12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.88 | 10.56 | 12000 | 46.01 | 40.81 | 58.3 |
| ICTY6038BL12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.65 | 7.8 | 10500 | 40.26 | 31.24 | 55.4 |
| ICTY6038BX24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.75 | 18 | 15000 | 57.51 | 63.76 | 63.1 |
| ICTY6038BH24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.58 | 13.92 | 13500 | 51.76 | 51.65 | 60.8 |
| ICTY6038BM24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.45 | 10.8 | 12000 | 46.01 | 40.81 | 58.3 |
| ICTY6038BL24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.35 | 8.4 | 10500 | 40.26 | 31.24 | 55.4 |
| ICTY6038BX48B | Two Ball | 48 | 36 ~ 72 | 0.41 | 19.68 | 15000 | 57.51 | 63.76 | 63.1 |
| ICTY6038BH48B | Two Ball | 48 | 36 ~ 72 | 0.32 | 15.36 | 13500 | 51.76 | 51.65 | 60.8 |
| ICTY6038BM48B | Two Ball | 48 | 36 ~ 72 | 0.25 | 12 | 12000 | 46.01 | 40.81 | 58.3 |
| ICTY6038BL48B | Two Ball | 48 | 36 ~ 72 | 0.21 | 10.08 | 10500 | 40.26 | 31.24 | 55.4 |
