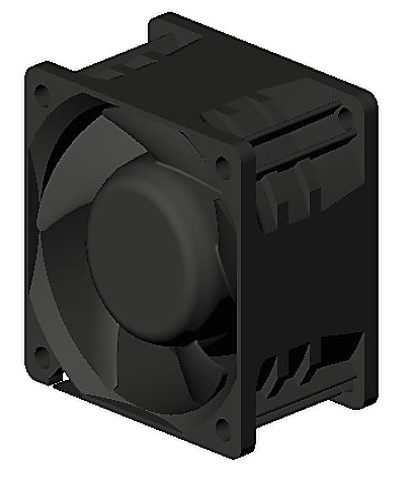

6038 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
---|---|---|---|---|---|---|---|---|---|
ICTP6038L12B | Two Ball | 12 | 7~13.2 | 1 | 12 | 12500 | 56.71 | 50.27 | 60.1 |
ICTP6038M12B | Two Ball | 12 | 7~13.2 | 1.6 | 19.2 | 14500 | 65.95 | 64.32 | 63.2 |
ICTP6038H12B | Two Ball | 12 | 7~13.2 | 2.3 | 27.6 | 16500 | 76.16 | 81.12 | 67.6 |
Dimension Drawing |

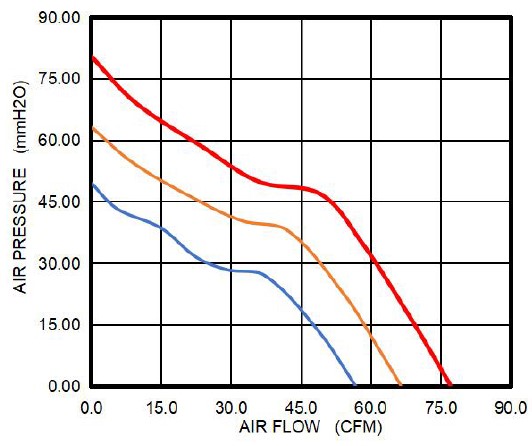

PQ Curve |
