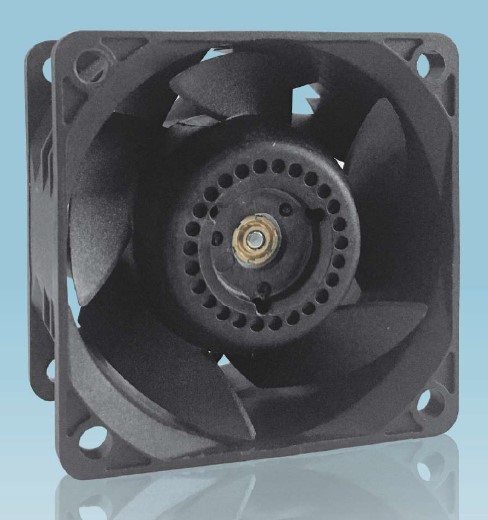

6038 Axial Series A
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH6038L12B | Two Ball | 12 | 7.0 to 13.8 | 0.48 | 5.76 | 9000 | 38.95 | 1.036 | 52.3 |
| ICTH6038M12B | Two Ball | 12 | 7.0 to 13.8 | 0.62 | 7.44 | 10000 | 45.9 | 1.261 | 55 |
| ICTH6038H12B | Two Ball | 12 | 7.0 to 13.8 | 0.78 | 9.36 | 11000 | 50.21 | 1.536 | 57.7 |
| ICTH6038X12B | Two Ball | 12 | 7.0 to 13.8 | 1.07 | 12.84 | 12500 | 55.3 | 1.861 | 61 |

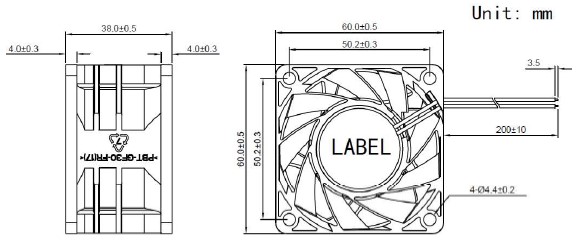

Dimension Drawing |

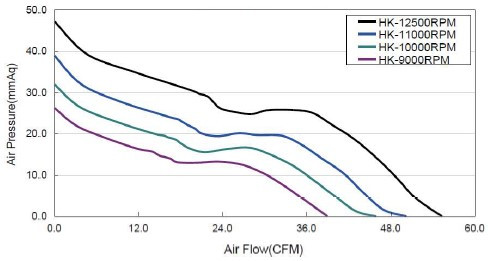

PQ Curve |
 |
 |
