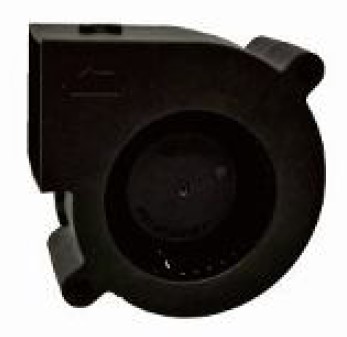

6028 Blower Series Y

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)

Feature option:

auto restart, limited current, rotate detection, temperature control

Item No.	Bearing Type	Operating Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated Input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)
ICTV6028X12C	CycleSeal	12	7.0 ~ 13.8	0.36	4.32	6000	11.89	23.01	45.7
ICTV6028H12C	CycleSeal	12	7.0 ~ 13.8	0.23	2.76	5000	9.9	15.98	41.7
ICTV6028M12C	CycleSeal	12	7.0 ~ 13.8	0.12	1.44	4000	7.92	10.22	36.9
ICTV6028L12C	CycleSeal	12	7.0 ~ 13.8	0.06	0.72	3000	5.94	5.75	30.6
ICTV6028X24C	CycleSeal	24	14.0 ~ 27.6	0.18	4.32	6000	11.89	23.01	45.7
ICTV6028H24C	CycleSeal	24	14.0 ~ 27.6	0.12	2.88	5000	9.9	15.98	41.7
ICTV6028M24C	CycleSeal	24	14.0 ~ 27.6	0.06	1.44	4000	7.92	10.22	36.9
ICTV6028L24C	CycleSeal	24	14.0 ~ 27.6	0.03	0.72	3000	5.94	5.75	30.6
ICTV6028X12B	Two Ball	12	7.0 ~ 13.8	0.36	4.32	6000	11.89	23.01	45.7
ICTV6028H12B	Two Ball	12	7.0 ~ 13.8	0.23	2.76	5000	9.9	15.98	41.7
ICTV6028M12B	Two Ball	12	7.0 ~ 13.8	0.12	1.44	4000	7.92	10.22	36.9
ICTV6028L12B	Two Ball	12	7.0 ~ 13.8	0.06	0.72	3000	5.94	5.75	30.6
ICTV6028X24B	Two Ball	24	14.0 ~ 27.6	0.18	4.32	6000	11.89	23.01	45.7
ICTV6028H24B	Two Ball	24	14.0 ~ 27.6	0.12	2.88	5000	9.9	15.98	41.7
ICTV6028M24B	Two Ball	24	14.0 ~ 27.6	0.06	1.44	4000	7.92	10.22	36.9
ICTV6028L24B	Two Ball	24	14.0 ~ 27.6	0.03	0.72	3000	5.94	5.75	30.6
