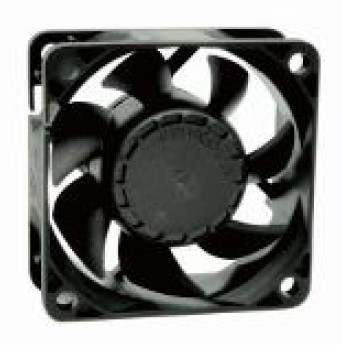

6025 Axial Series Y

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)

Feature option:

auto restart, limited current, rotate detection, temperature control

Item No.	Bearing Type	Operating Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated Input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)
ICTY6025M05C	CycleSeal	5	4.5 ~ 5.5	0.34	1.7	5000	23.95	5.63	35.17
ICTY6025L05C	CycleSeal	5	4.5 ~ 5.5	0.2	1	3500	16.76	2.76	27.42
ICTY6025Y12C	CycleSeal	12	7.0 ~ 13.8	0.83	9.96	9000	43.1	18.25	47.93
ICTY6025X12C	CycleSeal	12	7.0 ~ 13.8	0.49	5.88	7500	35.92	12.67	43.97
ICTY6025H12C	CycleSeal	12	7.0 ~ 13.8	0.33	3.96	6500	31.13	9.52	40.87
ICTY6025M12C	CycleSeal	12	7.0 ~ 13.8	0.15	1.8	5000	23.95	5.63	35.17
ICTY6025L12C	CycleSeal	12	7.0 ~ 13.8	0.09	1.08	3500	16.76	2.76	27.42
ICTY6025Y24C	CycleSeal	24	14.0 ~ 27.6	0.45	10.8	9000	43.1	18.25	47.93
ICTY6025X24C	CycleSeal	24	14.0 ~ 27.6	0.27	6.48	7500	35.92	12.67	43.97
ICTY6025H24C	CycleSeal	24	14.0 ~ 27.6	0.18	4.32	6500	31.13	9.52	40.87
ICTY6025M24C	CycleSeal	24	14.0 ~ 27.6	0.09	2.16	5000	23.95	5.63	35.17
ICTY6025L24C	CycleSeal	24	14.0 ~ 27.6	0.04	0.96	3500	16.76	2.76	27.42
ICTY6025Y48C	CycleSeal	48	36 ~ 72	0.24	11.52	9000	43.1	18.25	47.93
ICTY6025X48C	CycleSeal	48	36 ~ 72	0.15	7.2	7500	35.92	12.67	43.97
ICTY6025H48C	CycleSeal	48	36 ~ 72	0.09	4.32	6500	31.13	9.52	40.87
ICTY6025M48C	CycleSeal	48	36 ~ 72	0.05	2.4	5000	23.95	5.63	35.17
ICTY6025L48C	CycleSeal	48	36 ~ 72	0.03	1.44	3500	16.76	2.76	27.42
ICTY6025M05B	Two Ball	5	4.5 ~ 5.5	0.34	1.7	5000	23.95	5.63	35.17
ICTY6025L05B	Two Ball	5	4.5 ~ 5.5	0.2	1	3500	16.76	2.76	27.42
ICTY6025Y12B	Two Ball	12	7.0 ~ 13.8	0.83	9.96	9000	43.1	18.25	47.93
ICTY6025X12B	Two Ball	12	7.0 ~ 13.8	0.49	5.88	7500	35.92	12.67	43.97
ICTY6025H12B	Two Ball	12	7.0 ~ 13.8	0.33	3.96	6500	31.13	9.52	40.87
ICTY6025M12B	Two Ball	12	7.0 ~ 13.8	0.15	1.8	5000	23.95	5.63	35.17
ICTY6025L12B	Two Ball	12	7.0 ~ 13.8	0.09	1.08	3500	16.76	2.76	27.42
ICTY6025Y24B	Two Ball	24	14.0 ~ 27.6	0.45	10.8	9000	43.1	18.25	47.93
ICTY6025X24B	Two Ball	24	14.0 ~ 27.6	0.27	6.48	7500	35.92	12.67	43.97
ICTY6025H24B	Two Ball	24	14.0 ~ 27.6	0.18	4.32	6500	31.13	9.52	40.87
ICTY6025M24B	Two Ball	24	14.0 ~ 27.6	0.09	2.16	5000	23.95	5.63	35.17
ICTY6025L24B	Two Ball	24	14.0 ~ 27.6	0.04	0.96	3500	16.76	2.76	27.42
ICTY6025Y48B	Two Ball	48	36 ~ 72	0.24	11.52	9000	43.1	18.25	47.93
ICTY6025X48B	Two Ball	48	36 ~ 72	0.15	7.2	7500	35.92	12.67	43.97
ICTY6025H48B	Two Ball	48	36 ~ 72	0.09	4.32	6500	31.13	9.52	40.87
ICTY6025M48B	Two Ball	48	36 ~ 72	0.05	2.4	5000	23.95	5.63	35.17
ICTY6025L48B	Two Ball	48	36 ~ 72	0.03	1.44	3500	16.76	2.76	27.42
