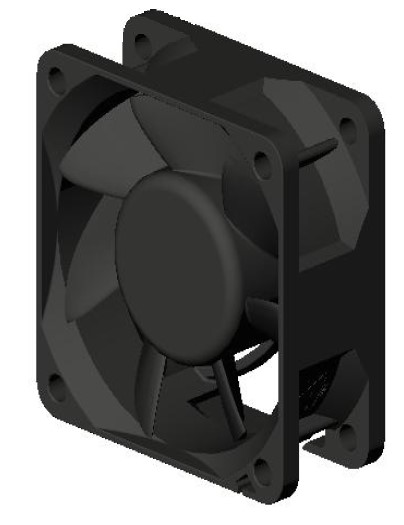

6025 Axial Series X

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTP6025L12BTwo Ball127~13.20.11.2300016.583.2123.4
ICTP6025M12BTwo Ball127~13.20.22.4400022.415.6129.1
ICTP6025H12BTwo Ball127~13.20.33.6550031.1931.1939.3
ICTP6025L12FFDB127~13.20.11.2300016.583.2123.4
ICTP6025M12FFDB127~13.20.22.4400022.415.6129.1
ICTP6025H12FFDB127~13.20.33.6550031.1931.1939.3

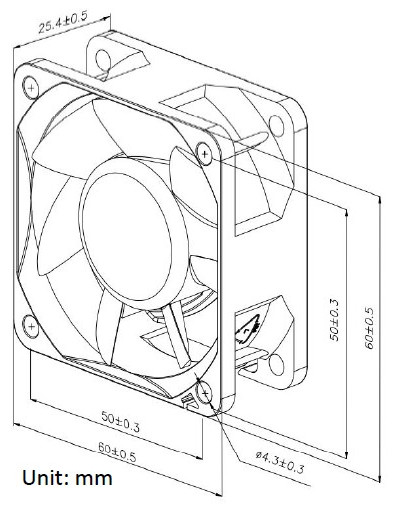

Dimension Drawing

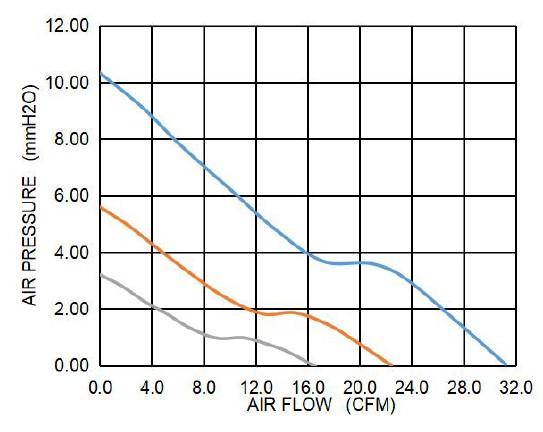

PQ Curve

dim a6025 pq a6025
