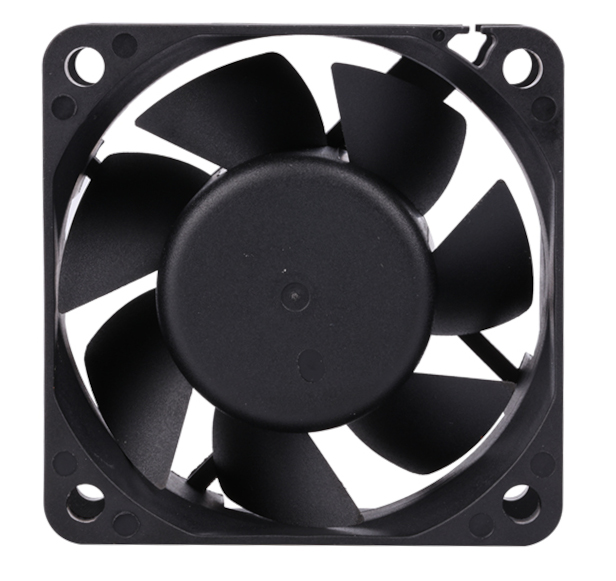

6025 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
MODELBearing TypeRated Voltage
(VDC)
Operating Voltage Range
(VDC)
Rated Current
(Amp)
Rated input Power
(Watt)
Rated Speed
(R.P.M.)
Maximum Air Flow
(CFM)
Maximum Air Pressure
(mmH2O)
Noise
(dB-A)
ICTA6025L05SSleeve54.5 ~ 5.50.150.75310014.132.7422.5
ICTA6025L12SSleeve127 ~ 13.80.060.72310014.132.7422.5
ICTA6025L24SSleeve2414 ~ 27.60.051.20310014.132.7422.5
ICTA6025L48SSleeve4828 ~ 560.041.92310014.132.7422.5
ICTA6025M05SSleeve54.5 ~ 5.50.221.10360016.243.6024.5
ICTA6025M12SSleeve127 ~ 13.80.080.96360016.243.6024.5
ICTA6025M24SSleeve2414 ~ 27.60.061.44360016.243.6024.5
ICTA6025M48SSleeve4828 ~ 560.041.92360016.243.6024.5
ICTA6025H05SSleeve54.5 ~ 5.50.311.55425019.424.9028.0
ICTA6025H12SSleeve127 ~ 13.80.121.44425019.424.9028.0
ICTA6025H24BTwo Ball2414 ~ 27.60.081.92425019.424.9028.0
ICTA6025H48BTwo Ball4828 ~ 560.052.40425019.424.9028.0
ICTA6025X12BTwo Ball127 ~ 13.80.182.16500022.956.9633.0
ICTA6025X24BTwo Ball2414 ~ 27.60.092.16500022.956.9633.0
ICTA6025X48BTwo Ball4828 ~ 560.062.88500022.956.9633.0
ICTA6025Y24BTwo Ball2414 ~ 27.60.204.80600031.7010.8042.5
ICTA6025Y48BTwo Ball4828 ~ 560.115.28600031.7010.8042.5

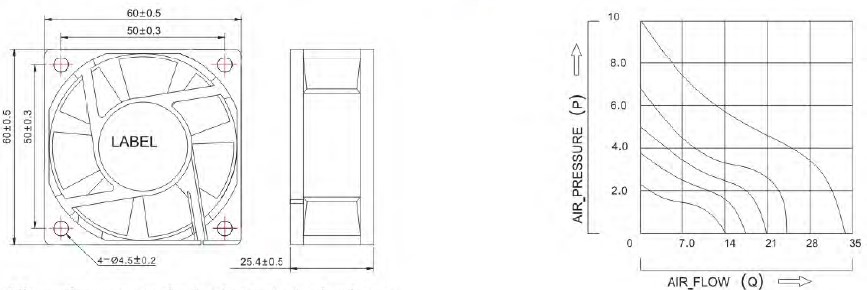

Dimension Drawing

dim A6025
