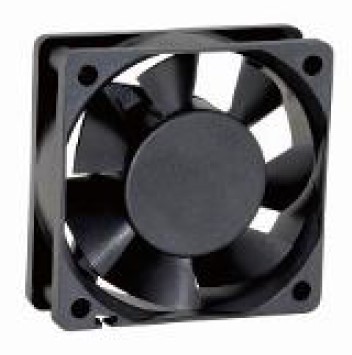

6020 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY6020H05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.39 | 1.95 | 5000 | 19.05 | 4.57 | 36.8 |
| ICTY6020M05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.2 | 1 | 4000 | 15.24 | 2.92 | 32 |
| ICTY6020L05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.09 | 0.45 | 3000 | 11.43 | 1.65 | 25.7 |
| ICTY6020H12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.14 | 1.68 | 5000 | 19.05 | 4.57 | 36.8 |
| ICTY6020M12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 4000 | 15.24 | 2.92 | 32 |
| ICTY6020L12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.05 | 0.6 | 3000 | 11.43 | 1.65 | 25.7 |
| ICTY6020H24C | Sleeve | 24 | 14.0 ~ 27.6 | 0.08 | 1.92 | 5000 | 19.05 | 4.57 | 36.8 |
| ICTY6020M24C | Sleeve | 24 | 14.0 ~ 27.6 | 0.05 | 1.2 | 4000 | 15.24 | 2.92 | 32 |
| ICTY6020L24C | Sleeve | 24 | 14.0 ~ 27.6 | 0.03 | 0.72 | 3000 | 11.43 | 1.65 | 25.7 |
| ICTY6020H05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.39 | 1.95 | 5000 | 19.05 | 4.57 | 36.8 |
| ICTY6020M05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.2 | 1 | 4000 | 15.24 | 2.92 | 32 |
| ICTY6020L05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.09 | 0.45 | 3000 | 11.43 | 1.65 | 25.7 |
| ICTY6020H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.14 | 1.68 | 5000 | 19.05 | 4.57 | 36.8 |
| ICTY6020M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 4000 | 15.24 | 2.92 | 32 |
| ICTY6020L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.05 | 0.6 | 3000 | 11.43 | 1.65 | 25.7 |
| ICTY6020H24C | Two Ball | 24 | 14.0 ~ 27.6 | 0.08 | 1.92 | 5000 | 19.05 | 4.57 | 36.8 |
| ICTY6020M24C | Two Ball | 24 | 14.0 ~ 27.6 | 0.05 | 1.2 | 4000 | 15.24 | 2.92 | 32 |
| ICTY6020L24C | Two Ball | 24 | 14.0 ~ 27.6 | 0.03 | 0.72 | 3000 | 11.43 | 1.65 | 25.7 |
