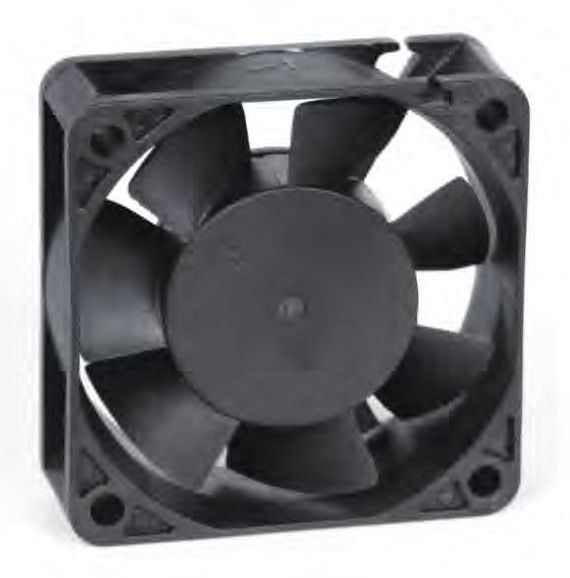

6020 Axial Fan Basic
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| MODEL | Bearing Type | Rated Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTA6020L05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.14 | 0.70 | 3200 | 13.06 | 3.03 | 24.0 |
| ICTA6020L12S | Sleeve | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 3200 | 13.06 | 3.03 | 24.0 |
| ICTA6020L24S | Sleeve | 24 | 14 ~ 27.6 | 0.04 | 0.96 | 3200 | 13.06 | 3.03 | 24.0 |
| ICTA6020M05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.19 | 0.95 | 3600 | 14.24 | 3.96 | 25.3 |
| ICTA6020M12S | Sleeve | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 3600 | 14.24 | 3.96 | 25.3 |
| ICTA6020M24S | Sleeve | 24 | 14 ~ 27.6 | 0.04 | 0.96 | 3600 | 14.24 | 3.96 | 25.3 |
| ICTA6020H05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.24 | 1.20 | 4000 | 16.60 | 4.80 | 28.0 |
| ICTA6020H12S | Sleeve | 12 | 7 ~ 13.8 | 0.11 | 1.32 | 4000 | 16.60 | 4.80 | 28.0 |
| ICTA6020H24S | Sleeve | 24 | 14 ~ 27.6 | 0.05 | 1.20 | 4000 | 16.60 | 4.80 | 28.0 |
| ICTA6020X05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.33 | 1.65 | 4400 | 18.36 | 5.81 | 31.0 |
| ICTA6020X12B | Two Ball | 12 | 7 ~ 13.8 | 0.15 | 1.80 | 4400 | 18.36 | 5.81 | 31.0 |
| ICTA6020X24B | Two Ball | 24 | 14 ~ 27.6 | 0.07 | 1.68 | 4400 | 18.36 | 5.81 | 31.0 |
| ICTA6020Y12B | Two Ball | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 4800 | 19.78 | 7.00 | 33.0 |
| ICTA6020Y24B | Two Ball | 24 | 14 ~ 27.6 | 0.09 | 2.16 | 4800 | 19.78 | 7.00 | 33.0 |

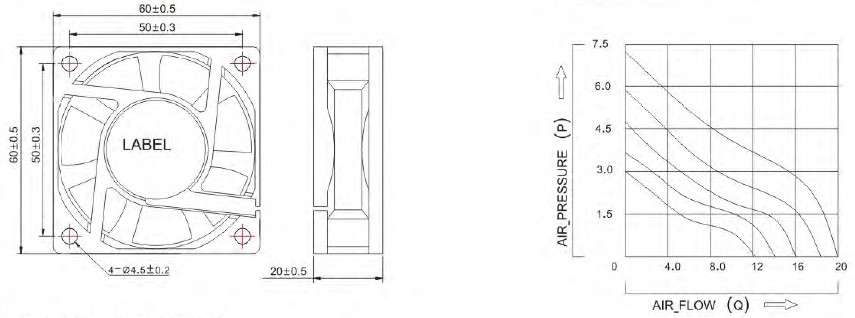

Dimension Drawing
