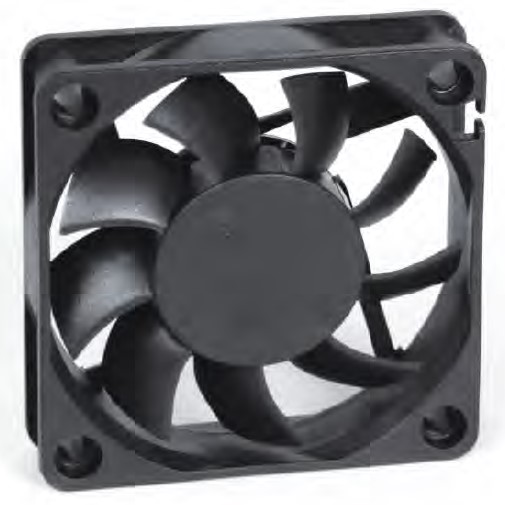

6015 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
MODELBearing TypeRated Voltage
Operating Voltage Range
Rated Current
Rated input Power
Rated Speed
Maximum Air Flow
Maximum Air Pressure
ICTA6015L05SSleeve54 ~ 60.150.75280011.302.1223.5
ICTA6015L12SSleeve127 ~
ICTA6015M05SSleeve54 ~ 60.241.20330012.452.9528.5
ICTA6015M12SSleeve127 ~
ICTA6015H12BTwo Ball127 ~
ICTA6015H24BTwo Ball2414 ~
ICTA6015X12BTwo Ball127 ~
ICTA6015X24BTwo Ball2414 ~

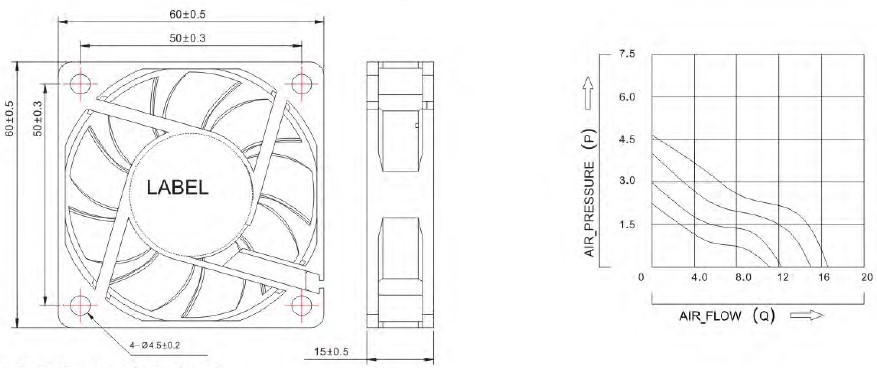

Dimension Drawing

dim A6015
