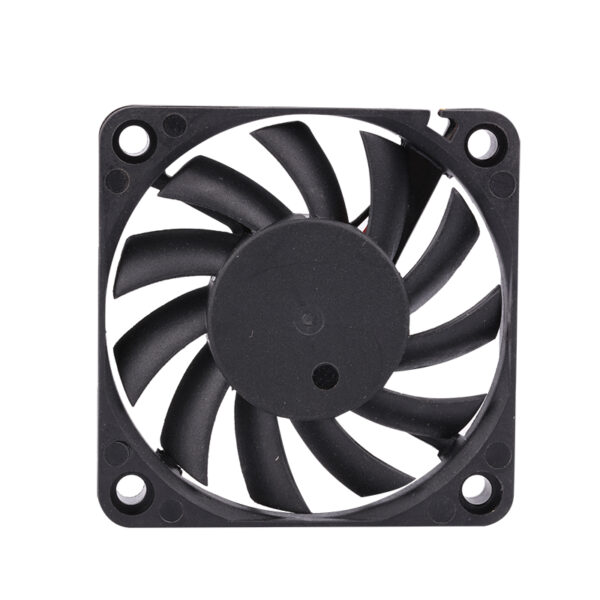

6010 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
MODELBearing TypeRated Voltage
(VDC)
Operating Voltage Range
(VDC)
Rated Current
(Amp)
Rated input Power
(Watt)
Rated Speed
(R.P.M.)
Maximum Air Flow
(CFM)
Maximum Air Pressure
(mmH2O)
Noise
(dB-A)
ICTA6010L05SSleeve54.5 ~ 5.50.201.00300013.421.6524.5
ICTA6010L12SSleeve127 ~ 13.80.121.44300013.421.6524.5
ICTA6010M05SSleeve54.5 ~ 5.50.221.10360015.542.4029.0
ICTA6010M12SSleeve127 ~ 13.80.161.92360015.542.4029.0
ICTA6010H05BTwo Ball54.5 ~ 5.50.251.25420018.013.3533.0
ICTA6010H12BTwo Ball127 ~ 13.80.202.40420018.013.3533.0
ICTA6010X12BTwo Ball127 ~ 13.80.222.64480021.194.3036.5
ICTA6010Y12BTwo Ball127 ~ 13.80.253.00530023.304.5738.0

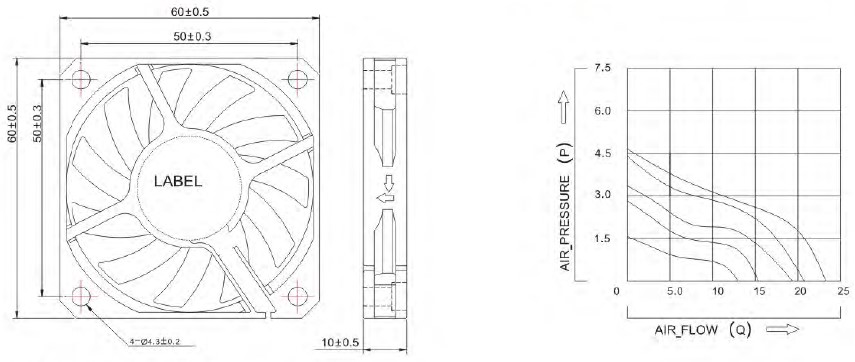

Dimension Drawing

dim A6010
