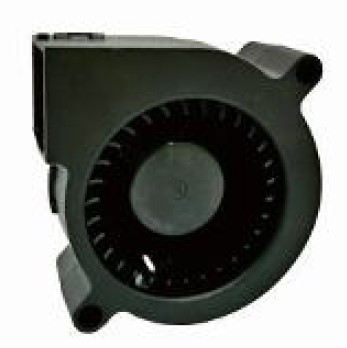

5025 Blower Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTV5025X12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.3 | 3.6 | 6000 | 7.83 | 16.24 | 42.6 |
| ICTV5025H12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.15 | 1.8 | 5000 | 6.52 | 11.28 | 38.6 |
| ICTV5025M12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 4000 | 5.22 | 7.22 | 33.8 |
| ICTV5025L12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.06 | 0.72 | 3500 | 4.57 | 5.52 | 30.9 |
| ICTV5025H24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.14 | 3.36 | 6000 | 7.83 | 16.24 | 42.6 |
| ICTV5025M24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.09 | 2.16 | 5000 | 6.52 | 11.28 | 38.6 |
| ICTV5025L24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.04 | 0.96 | 4000 | 5.22 | 7.22 | 33.8 |
| ICTV5025X12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.3 | 3.6 | 6000 | 7.83 | 16.24 | 42.6 |
| ICTV5025H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.15 | 1.8 | 5000 | 6.52 | 11.28 | 38.6 |
| ICTV5025M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 4000 | 5.22 | 7.22 | 33.8 |
| ICTV5025L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.06 | 0.72 | 3500 | 4.57 | 5.52 | 30.9 |
| ICTV5025H24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.14 | 3.36 | 6000 | 7.83 | 16.24 | 42.6 |
| ICTV5025M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.09 | 2.16 | 5000 | 6.52 | 11.28 | 38.6 |
| ICTV5025L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.04 | 0.96 | 4000 | 5.22 | 7.22 | 33.8 |
