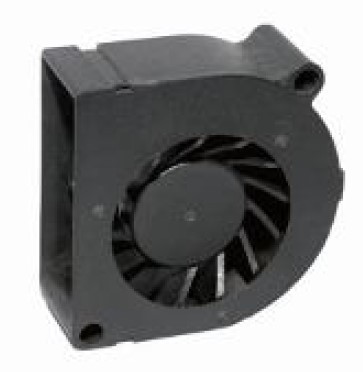

5020 Blower Series Y2
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTV5020SH05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.41 | 2.05 | 6000 | 6.92 | 12.19 | 36.7 |
| ICTV5020SM05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.36 | 1.8 | 5000 | 5.77 | 8.47 | 32.7 |
| ICTV5020SL05S | Sleeve | 5 | 4.5 ~ 5.5 | 0.2 | 1 | 4000 | 4.62 | 5.42 | 27.9 |
| ICTV5020SH12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.16 | 1.92 | 6000 | 6.92 | 12.19 | 36.7 |
| ICTV5020SM12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.14 | 1.68 | 5000 | 5.77 | 8.47 | 32.7 |
| ICTV5020SL12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 4000 | 4.62 | 5.42 | 27.9 |
| ICTV5020SH24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.08 | 1.92 | 6000 | 6.92 | 12.19 | 36.7 |
| ICTV5020SM24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.07 | 1.68 | 5000 | 5.77 | 8.47 | 32.7 |
| ICTV5020SL24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.05 | 1.2 | 4000 | 4.62 | 5.42 | 27.9 |
| ICTV5020BH05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.41 | 2.05 | 6000 | 6.92 | 12.19 | 36.7 |
| ICTV5020BM05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.36 | 1.8 | 5000 | 5.77 | 8.47 | 32.7 |
| ICTV5020BL05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.2 | 1 | 4000 | 4.62 | 5.42 | 27.9 |
| ICTV5020BH12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.16 | 1.92 | 6000 | 6.92 | 12.19 | 36.7 |
| ICTV5020BM12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.14 | 1.68 | 5000 | 5.77 | 8.47 | 32.7 |
| ICTV5020BL12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 4000 | 4.62 | 5.42 | 27.9 |
| ICTV5020BH24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.08 | 1.92 | 6000 | 6.92 | 12.19 | 36.7 |
| ICTV5020BM24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.07 | 1.68 | 5000 | 5.77 | 8.47 | 32.7 |
| ICTV5020BL24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.05 | 1.2 | 4000 | 4.62 | 5.42 | 27.9 |
