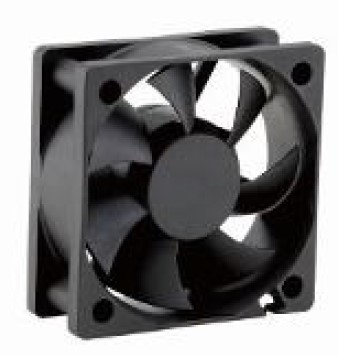

5020 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY5020H05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.34 | 1.7 | 6000 | 16.18 | 6.01 | 38.5 |
| ICTY5020M05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.17 | 0.85 | 4500 | 12.14 | 3.38 | 32.3 |
| ICTY5020L05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.05 | 0.25 | 3000 | 8.09 | 1.5 | 23.5 |
| ICTY5020H12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.18 | 2.16 | 6000 | 16.18 | 6.01 | 38.5 |
| ICTY5020M12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.07 | 0.84 | 4500 | 12.14 | 3.38 | 32.3 |
| ICTY5020L12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.03 | 0.36 | 3000 | 8.09 | 1.5 | 23.5 |
| ICTY5020H24C | CycleSeal | 24 | 14.0 ~ 27.6 | 0.09 | 2.16 | 6000 | 16.18 | 6.01 | 38.5 |
| ICTY5020M24C | CycleSeal | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 4500 | 12.14 | 3.38 | 32.3 |
| ICTY5020L24C | CycleSeal | 24 | 14.0 ~ 27.6 | 0.03 | 0.72 | 3000 | 8.09 | 1.5 | 23.5 |
| ICTY5020H05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.34 | 1.7 | 6000 | 16.18 | 6.01 | 38.5 |
| ICTY5020M05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.17 | 0.85 | 4500 | 12.14 | 3.38 | 32.3 |
| ICTY5020L05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.05 | 0.25 | 3000 | 8.09 | 1.5 | 23.5 |
| ICTY5020H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.18 | 2.16 | 6000 | 16.18 | 6.01 | 38.5 |
| ICTY5020M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.07 | 0.84 | 4500 | 12.14 | 3.38 | 32.3 |
| ICTY5020L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.03 | 0.36 | 3000 | 8.09 | 1.5 | 23.5 |
| ICTY5020H24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.09 | 2.16 | 6000 | 16.18 | 6.01 | 38.5 |
| ICTY5020M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 4500 | 12.14 | 3.38 | 32.3 |
| ICTY5020L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.03 | 0.72 | 3000 | 8.09 | 1.5 | 23.5 |
