5015 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP5015L12B | Two Ball | 12 | 7～13.2 | 0.08 | 0.96 | 4000 | 10.5 | 2.68 | 24.8 |
| ICTP5015M12B | Two Ball | 12 | 7～13.2 | 0.1 | 1.2 | 5000 | 13.5 | 4.11 | 30 |
| ICTP5015H12B | Two Ball | 12 | 7～13.2 | 0.15 | 1.8 | 6000 | 16.51 | 5.88 | 33.8 |
| ICTP5015X12B | Two Ball | 12 | 7～13.2 | 0.25 | 3 | 9000 | 25.64 | 13.94 | 45.3 |
| ICTP5015L12F | FDB | 12 | 7～13.2 | 0.08 | 0.96 | 4000 | 10.5 | 2.68 | 24.8 |
| ICTP5015M12F | FDB | 12 | 7～13.2 | 0.1 | 1.2 | 5000 | 13.5 | 4.11 | 30 |
| ICTP5015H12F | FDB | 12 | 7～13.2 | 0.15 | 1.8 | 6000 | 16.51 | 5.88 | 33.8 |

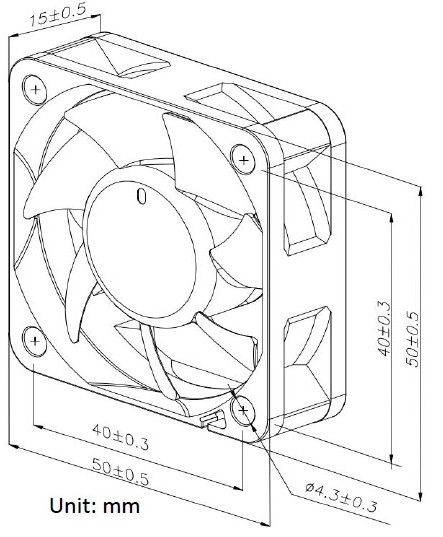

Dimension Drawing |

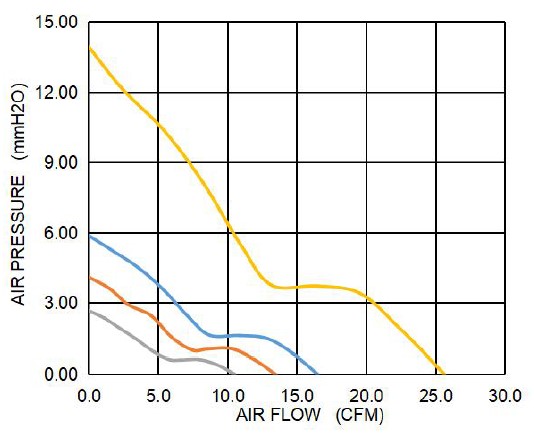

PQ Curve |
 |
 |
