5010 Blower Series A
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTN5010L12B | Two Ball | 12 | 5.0 to 13.8 | 0.09 | 1.08 | 4000 | 2.92 | 0.371 | 30.6 |
| ICTN5010M12B | Two Ball | 12 | 5.0 to 13.8 | 0.16 | 1.92 | 5000 | 4.42 | 0.684 | 35.5 |
| ICTN5010H12B | Two Ball | 12 | 5.0 to 13.8 | 0.25 | 3.00 | 6000 | 4.88 | 0.972 | 38.9 |

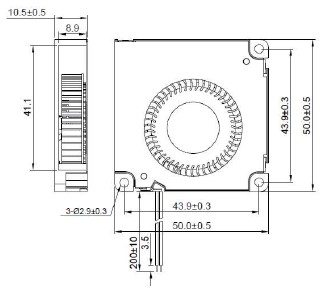

Dimension Drawing |

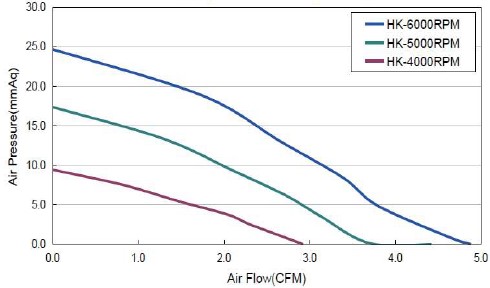

PQ Curve |
 |
 |
