5010 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP5010L12B | Two Ball | 12 | 7～13.2 | 0.12 | 1.44 | 6000 | 14.48 | 5.24 | 32.5 |
| ICTP5010M12B | Two Ball | 12 | 7～13.2 | 0.15 | 1.8 | 7000 | 16.99 | 7.02 | 34.3 |
| ICTP5010H12B | Two Ball | 12 | 7～13.2 | 0.2 | 2.4 | 8500 | 20.62 | 10.3 | 39.6 |
| ICTP5010L12F | FDB | 12 | 7～13.2 | 0.12 | 1.44 | 6000 | 14.48 | 5.24 | 32.5 |
| ICTP5010M12F | FDB | 12 | 7～13.2 | 0.15 | 1.8 | 7000 | 16.99 | 7.02 | 34.3 |
| ICTP5010H12F | FDB | 12 | 7～13.2 | 0.2 | 2.4 | 8500 | 20.62 | 10.3 | 39.6 |

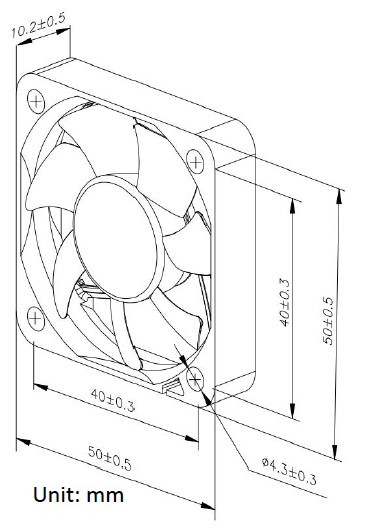

Dimension Drawing |

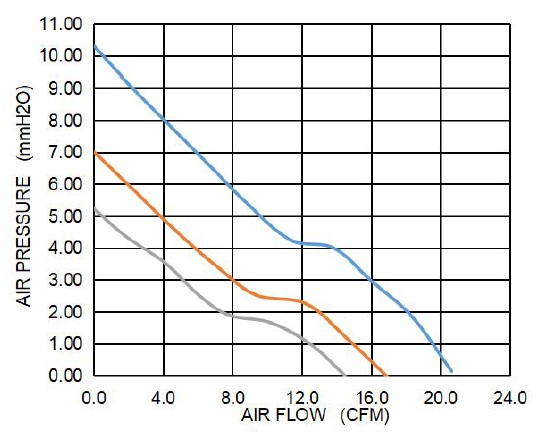

PQ Curve |
 |
 |
