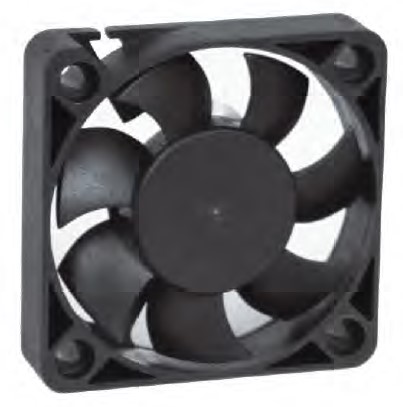

5010 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
MODELBearing TypeRated Voltage
Operating Voltage Range
Rated Current
Rated input Power
Rated Speed
Maximum Air Flow
Maximum Air Pressure
ICTA5010L05SSleeve54.5 ~
ICTA5010L12SSleeve127 ~
ICTA5010L24SSleeve2414 ~
ICTA5010M05SSleeve54.5 ~
ICTA5010M12SSleeve127 ~
ICTA5010M24SSleeve2414 ~
ICTA5010H05BTwo Ball57 ~
ICTA5010H12BTwo Ball127 ~
ICTA5010H24BTwo Ball2414 ~
ICTA5010X05BTwo Ball57 ~
ICTA5010X12BTwo Ball127 ~
ICTA5010X24BTwo Ball2414 ~

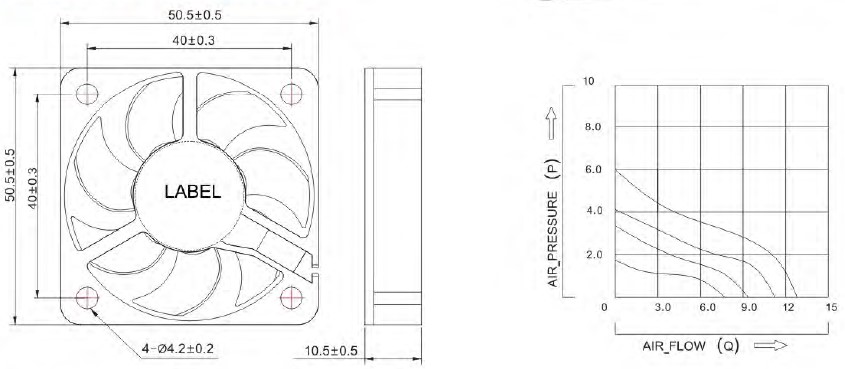

Dimension Drawing

dim A5010
