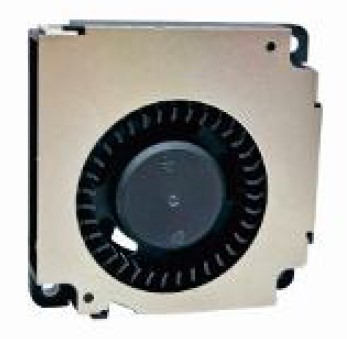

4510 Blower Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTV4510H05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.27 | 1.35 | 6500 | 3.35 | 13.54 | 33.2 |
| ICTV4510M05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.21 | 1.05 | 5500 | 2.83 | 9.69 | 29.6 |
| ICTV4510L05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.13 | 0.65 | 4500 | 2.32 | 6.49 | 25.2 |
| ICTV4510H12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.13 | 1.56 | 7000 | 3.6 | 15.7 | 34.8 |
| ICTV4510M12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.11 | 1.32 | 6500 | 3.35 | 13.54 | 33.2 |
| ICTV4510L12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.09 | 1.08 | 5500 | 2.83 | 9.69 | 29.6 |
| ICTV4510H05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.27 | 1.35 | 6500 | 3.35 | 13.54 | 33.2 |
| ICTV4510M05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.21 | 1.05 | 5500 | 2.83 | 9.69 | 29.6 |
| ICTV4510L05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.13 | 0.65 | 4500 | 2.32 | 6.49 | 25.2 |
| ICTV4510H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.13 | 1.56 | 7000 | 3.6 | 15.7 | 34.8 |
| ICTV4510M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.11 | 1.32 | 6500 | 3.35 | 13.54 | 33.2 |
| ICTV4510L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.09 | 1.08 | 5500 | 2.83 | 9.69 | 29.6 |
