4056 Axial Series X

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTP4056L12BTwo Ball127~13.21.315.624200/2200028.4130.675.7
ICTP4056M12BTwo Ball127~13.22.8834.5632000/3020037.63242.8683

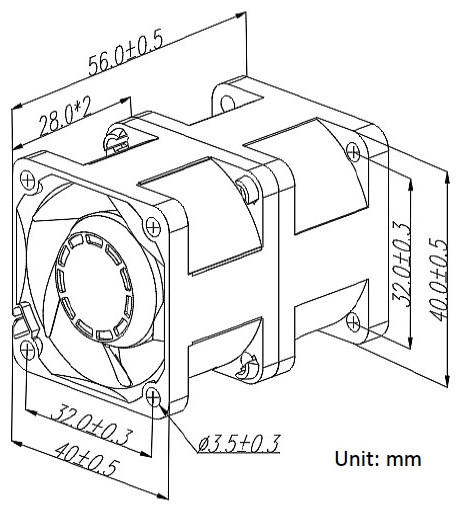

Dimension Drawing

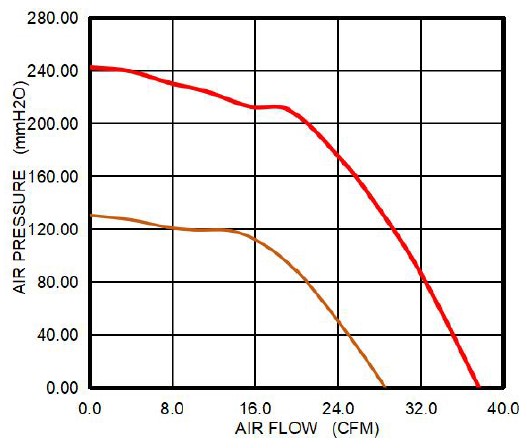

PQ Curve

dim a4056 pq a4056
